220KV Steel Tubular Electrical Power Pole and High Voltage Poles
  • 220KV Steel Tubular Electrical Power Pole and High Voltage Poles

220KV Steel Tubular Electrical Power Pole and High Voltage Poles

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-10-500KV
Product Details
Product Name:
Galvanized Electrical Power Steel Pole
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Shape:
Round / Polygonal / Conical / Tubular / Tapered
Connection Structure:
Overlap / Flangeconnection
Application:
Electrical Power Transmission Line
Appearance Treatment:
Appearance Treatment
High Light:

electric utility pole

,

power distribution poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

220KV Steel Tubular Electrical Power Pole , High Voltage Poles



Specifications



Products

  • 220KV Steel Tubular Electrical Power Pole for Transmission and Distribution Line

Application

  • Electrical Power transmission and distribution line

Type

  • Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc

Voltage Grade

  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

  • 2~30mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  • According to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle
  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers




Product Details



220KV Steel Tubular Electrical Power Pole and High Voltage Poles 0

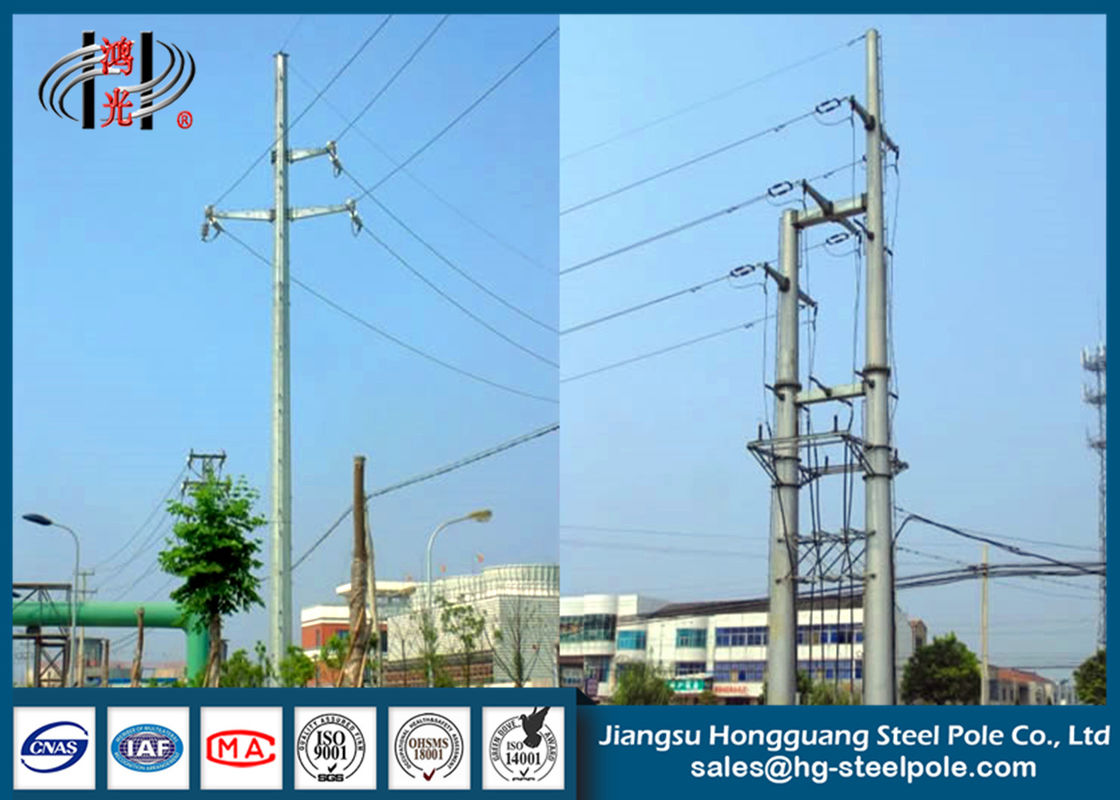

 Installation Site


220KV Steel Tubular Electrical Power Pole and High Voltage Poles 1
Engineering and Design Management


220KV Steel Tubular Electrical Power Pole and High Voltage Poles 2


Disign Software


“Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
In the R&D Department, there are many experienced senior research& design staff and rigid developmentnetwork, which ensure our design proposals meet customer demand, even exceed their expectations.


Quality Control Management


220KV Steel Tubular Electrical Power Pole and High Voltage Poles 3

JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.
