Painting 9M Galvanized Street Light Poles SS41 Steel Lamp Post Support Column For Road
  • Painting 9M Galvanized Street Light Poles SS41 Steel Lamp Post Support Column For Road

Painting 9M Galvanized Street Light Poles SS41 Steel Lamp Post Support Column For Road

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SLP-13m
Product Details
Connection Structure:
Overlap / Flange Connection
Appearance Treatment:
Painting
Height:
13m
Shape:
Conical, Round, Polygonal
Application:
Street , Road, Highway, Commercial Areas, Seaport
Color:
According To Customer Requirements
High Light:

SS41 Steel Lamp Post

,

9M Street Light Steel Lamp Post

,

galvanized street light pole Support Column

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
Covered by Plastic Wrap or Mat or according to client's requests.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
Western Union, L/C, T/T
Supply Ability
3,000 Metric Tons per Month
Product Description

Specifications:



Products



  • 9M Street Light Steel Lamp Post Support Column for Road

Application

  • Street / Road Lighting, Highway Lighting, Commercial Areas Lighting, Seaport Lighting, AirPort Lighting, Parking Lot Lighting, Stadium Lighting, Garden Lighting, etc.

Type

  • With Single / Double / Triple Outreach Arms or Brackets

Design Standard

  • EN 40 / BS 5649

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

  • 3~6mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Surface Treatment

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Could be powder coated or painted according to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers







Description:



The street lighting poles products are mainly used for the lighting and decorating of the trunk road,roadway. The lighting poles are manufactured by high quality steel plate which ensures high level of structure steady and reasonable. The power of luminaries and the height of pole can be matched scientifically according to the width of the road. With large amount of installation, the night becomes more beautiful by the lighting flow.

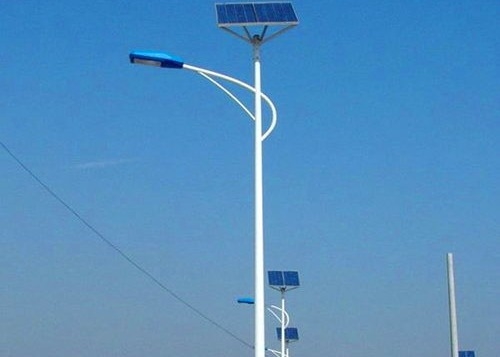

Installation Site:



Painting 9M Galvanized Street Light Poles SS41 Steel Lamp Post Support Column For Road 0



Quality Control System



Painting 9M Galvanized Street Light Poles SS41 Steel Lamp Post Support Column For Road 1



Our Services



  • Reply within 24 Working Hours
  • Factory Direct Sale
  • More than 15 Years Design & Manufacture Experience
  • Capable to Handle Volume Orders
  • High-Quality and Low-Price Products
  • Provide Professional Design by Our Experienced R&D Engineers
  • Rich Exporting Experience
  • ODM, OEM Acceptable
  • Technical Support by E-mail
  • Calling service
