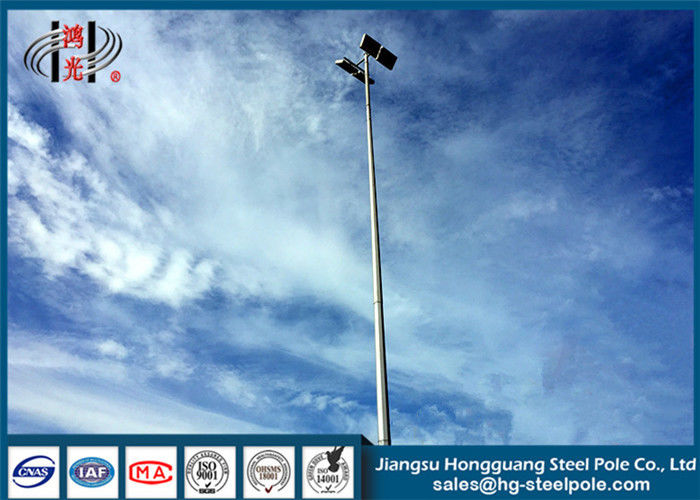

Q420 9 Meter High Mast Lighting Columns With Template Bracket
  • Q420 9 Meter High Mast Lighting Columns With Template Bracket

Q420 9 Meter High Mast Lighting Columns With Template Bracket

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Hot Roll Steel Q235, Q345, Q420, Q460, Gr50, Gr.65, SS400, Etc.
Appearance Treatment:
Hot-dip Galvanized / Powder Coated / Painting
Connection Structure:
Overlap/flange Connection
Round / Polygonal / Conical / Tubular, Etc
Wall Thickness:
High Light:

9 meter high mast lighting columns


Q420 high mast lighting columns


Q420 9 meter high mast pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description


Hop Dip Galvanized High Mast Light Pole With Template And Bracket



Product Description:

The material is in accordance with NF EN 10025 Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.


Manufacture Tolerance
-Component Length:-25mm to 75mm
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm



Product Specification:

  • Hop Dip Galvanized High Mast Light Pole With Template And Bracket
  • Street / road / highway / commercial areas lighting, etc
  • Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others.
  • Round / Polygonal / Conical / Tubular / etc.
Once Forming
  • 16m Once forming without joint
Wall thickness
  • 2mm-30mm


  • ISO9001-2008 , AAA credit rating, etc

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.

Welding Technique

  • Automatic submerged arc welding


  • Against earthquake of 8.8 grade. Wind speed as design.


Product Advantages:

1).Short Construction Cycle
Our factory has a professional technical and production team to ensure the completion time of the product.
2).Low Overall Cost
Our factory and raw material factory have long-term cooperation to ensure low cost of products.
3).Weather Resistance
The quality of our products is high quality and resistant to bad weather.
4).Provide Professional Design by Our Experienced R&D Engineers
5).Rich Exporting Experience
6).ODM, OEM Acceptable
7).Technical Support by E-mail


Application Scope:

High mast poles are widely used in Street / Road , Highway, Commercial Areas, Seaport, AirPort, Parking Lot, Stadium, Square, etc.

Q420 9 Meter High Mast Lighting Columns With Template Bracket 0



Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.

Q420 9 Meter High Mast Lighting Columns With Template Bracket 1


Company Information:


With over 15 Years of Experience/ Capable to Handle Volume Orders

Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.


Our Services:


1).Reply within 24 Working Hours
2).Factory Direct Sale
3).More than 15 Years Design & Manufacture Experience
4).Capable to Handle Volume Orders
5).High-Quality and Low-Price Products
6).Provide Professional Design by Our Experienced R&D Engineers
7).Rich Exporting Experience
8).ODM, OEM Acceptable
9).Technical Support by E-mail
10).Calling service
