Anti Corrosive 3.0mm 69KV Electric Steel Pole for Philippines NEA Standard
  • Anti Corrosive 3.0mm 69KV Electric Steel Pole for Philippines NEA Standard
  • Anti Corrosive 3.0mm 69KV Electric Steel Pole for Philippines NEA Standard

Anti Corrosive 3.0mm 69KV Electric Steel Pole for Philippines NEA Standard

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-220KV
Product Details
Voltage:
69KV
Base Plate:
As Per Client’s Requirement.
Joint:
Flange Mode
Wall Thickness:
3.0mm
Painting:
According To Clients' Request
Material:
Hot Roll Steel Q345
Color:
Customized
High Light:

220KV electric steel pole

,

3.0mm electric steel pole

,

flange mode Electric Steel Pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Anti-corrosive Steel 3.0mm 69KV Electrical Power Pole for Philippines NEA Standard

Product Description:



Products
  • Anti-corrosive Steel 3.0mm 69KV Electrical Power Pole for Philippines NEA Standard

Application
  • Electrical power transmission line

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape

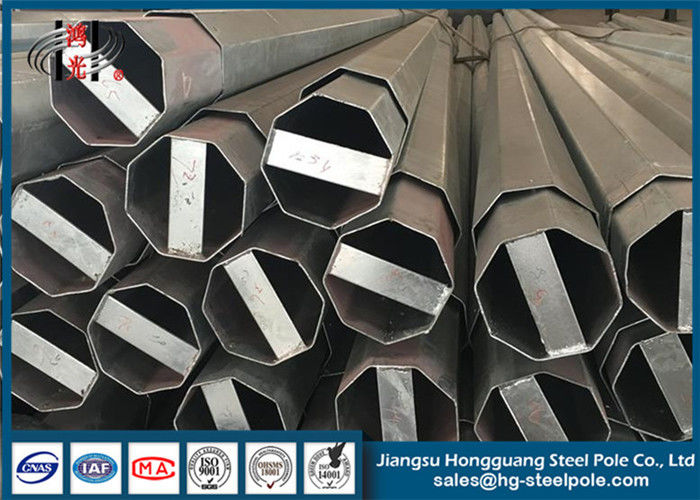

  • Octagonal

Galvanization
  • American standard ASTM A123.
Base plate
  • As per client’s requirement.



National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT



Height(ft) Thickness(mm) Butt Diameter(mm) Top Diameter(mm) Design Load(kg) Yield Stress(MPA) Zinc Coating(microns)
25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86



Product Advantages:

1. Short Construction Cycle
2. Low Overall Cost
3. Easy Installation and Maintenance
4. Weather Resistance
5. Anti-corrosion
6. More than 15 Years Design & Manufacture Experience
7. Capable to Handle Volume Orders
8. Provide Professional Design by Our Experienced R&D Engineers
9. Rich Exporting Experience
10. ODM, OEM Acceptable
11. Technical Support by E-mail



Anti Corrosive 3.0mm 69KV Electric Steel Pole for Philippines NEA Standard 0



Key Specification:

1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.



Packaging&Shipping:



Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.
