|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.|
|Delivery Time:||2 weeks per container after PO / drawing / prepayment confirmed|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Material:||Hot Roll Steel||Once Forming:||16m Once Forming Without Joint|
|Voltage Grade:||5000KV||Joint:||Flange Mode|
|Shape:||Polygonal(6-side,8side,12-side,16side) Round Tapered||Wall Thickness:||4mm|
|Galvanization:||Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.|
Q460 Power Transmission Poles,
5000KV Power Transmission Poles,
Q460 steel utility poles

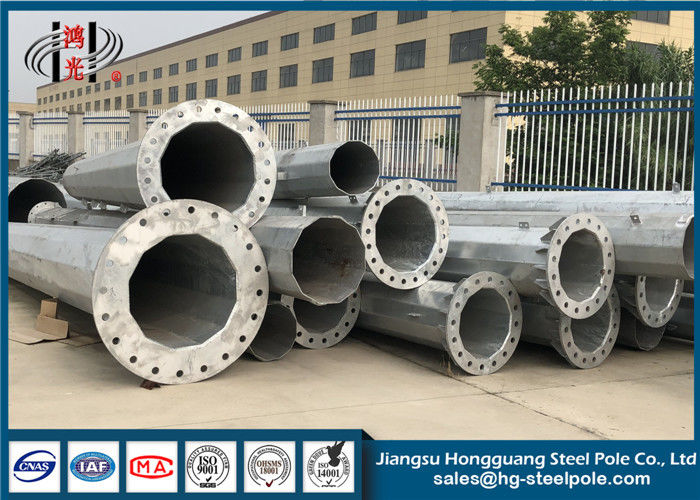

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.
Our steel pole, steel poles, steel power poles, power distribution equipment, electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,street lamp poles ,solar street lamps steel poles ,high mast lamp poles ,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product, street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm. Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating, final quality ch eck according by client required.
All of our material are purchased from famous factory to assure the high quality.
A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
To assure our products qualified , we take steps as follows :
1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .
2.Introducing ISO management :We are aware of ISO 9001:2008 certificate .
3.QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment
Design and Detail
Lofting and designing software :We have transmission power pole designing software which can help us design all kinds of steel poles ,at the same time ,the TMA and LMA are adopted by us to design the drawing accurately
We have completed many big and important projects all over the world and win the trust from our clients.
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
