Octagonal Street Light ASTM573 Power Transmission Poles
  • Octagonal Street Light ASTM573 Power Transmission Poles
  • Octagonal Street Light ASTM573 Power Transmission Poles

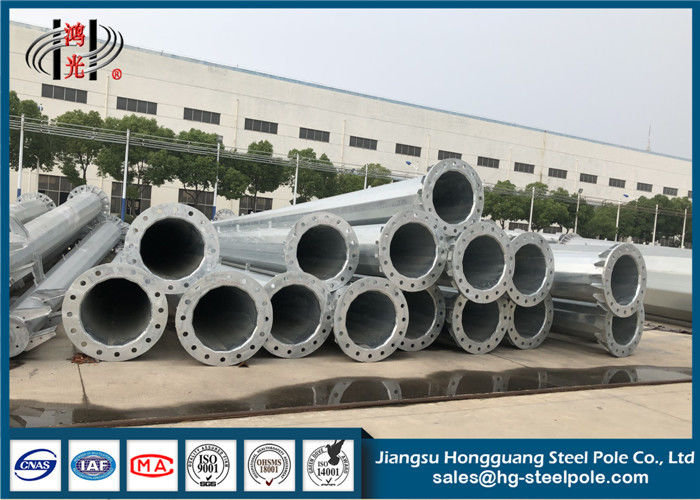

Octagonal Street Light ASTM573 Power Transmission Poles

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Hot Roll Steel
Once Forming:
16m Once Forming Without Joint
Voltage Grade:
5000KV
Joint:
Flange Mode
Shape:
Polygonal(6-side,8side,12-side,16side) Round Tapered
Wall Thickness:
4mm
Galvanization:
Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

ASTM573 Power Transmission Poles

,

Octagonal Power Transmission Poles

,

octagonal street light pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Galvanized Steel Pole Power Transmission Poles Steel Tubular Pole Steel Power Pole

Product Description:



Products
  • Galvanized Steel Pole Power Transmission Poles Steel Tubular Pole Steel Power Pole

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Base plate
  • Square/round/polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization
  • Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Brief:

Our steel pole, steel poles, steel power poles, power distribution equipment, electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,street lamp poles ,solar street lamps steel poles ,high mast lamp poles ,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product, street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm. Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating, final quality ch eck according by client required.



Our Services:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7. We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.




Octagonal Street Light ASTM573 Power Transmission Poles 0



Product Process:

All of our material are purchased from famous factory to assure the high quality.

A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
Inspection

To assure our products qualified , we take steps as follows :

1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .

2.Introducing ISO management :We are aware of ISO 9001:2008 certificate .

3.QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment

Design and Detail

Lofting and designing software :We have transmission power pole designing software which can help us design all kinds of steel poles ,at the same time ,the TMA and LMA are adopted by us to design the drawing accurately

Project
We have completed many big and important projects all over the world and win the trust from our clients.



Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86
