Flange Joint Q235 110KV Electrical Utility Pole
  • Flange Joint Q235 110KV Electrical Utility Pole
  • Flange Joint Q235 110KV Electrical Utility Pole

Flange Joint Q235 110KV Electrical Utility Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Q235
Once Forming:
16m Once Forming Without Joint
Voltage Grade:
110KV
Joint:
Flange Mode
Shape:
Tubular
Wall Thickness:
3.5mm
Galvanization:
Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

110KV Electrical Utility Pole

,

Q235 Electrical Utility Pole

,

Q235 Electric Transmission Pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electrical Utility Pole Electric Transmission Pole Steel Tubular Pole Steel Power Pole

Product Description:



Products
  • Electrical Utility Pole Electric Transmission Pole Steel Tubular Pole Steel Power Pole

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Base plate
  • Square/round/polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization
  • Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Advantages:

1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
5). Anti-corrosion
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience
10). ODM, OEM Acceptable
11). Technical Support by E-mail



Our Services:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7. We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

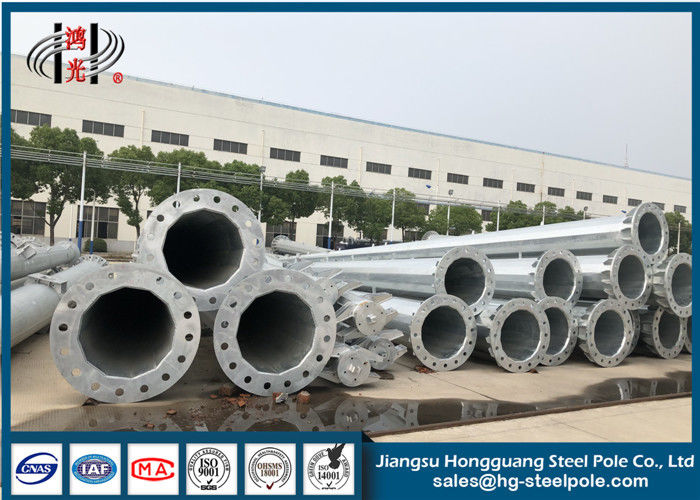

Flange Joint Q235 110KV Electrical Utility Pole 0



Product Process:

All of our material are purchased from famous factory to assure the high quality.

A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
Inspection

To assure our products qualified , we take steps as follows :

1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .

2.Introducing ISO management :We are aware of ISO 9001:2008 certificate .

3.QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment

Design and Detail

Lofting and designing software :We have transmission power pole designing software which can help us design all kinds of steel poles ,at the same time ,the TMA and LMA are adopted by us to design the drawing accurately

Project
We have completed many big and important projects all over the world and win the trust from our clients.

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86
