Electric Transmission Tower 69KV Power Distribution Poles
  • Electric Transmission Tower 69KV Power Distribution Poles
  • Electric Transmission Tower 69KV Power Distribution Poles

Electric Transmission Tower 69KV Power Distribution Poles

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Q235
Once Forming:
16m Once Forming Without Joint
Voltage Grade:
69KV
Joint:
Joint With Flange Mode
Shape:
Conical
Wall Thickness:
4mm
Galvanization:
In Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

69KV metal power poles

,

Electric Transmission utility power pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electric Transmission Tower Steel Power Pole Power Distribution Poles Steel Transmission Poles

Product Description:



Products
  • Electric Transmission Tower Steel Power Pole Power Distribution Poles Steel Transmission Poles

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Base plate
  • Square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization
  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Advantages:

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.


As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost. In order to provide better service for customers, we promise to reply within 24 Working Hours and technical support by E-mail and calling service."



Our Services:

1). Reply within 24 Working Hours
2). Factory Direct Sale
3). More than 15 Years Design & Manufacture Experience
4). Capable to Handle Volume Orders
5). High-Quality and Low-Price Products
6). Provide Professional Design by Our Experienced R&D Engineers
7). Rich Exporting Experience
8). ODM, OEM Acceptable
9). Technical Support by E-mail
10). Calling service




Electric Transmission Tower 69KV Power Distribution Poles 0

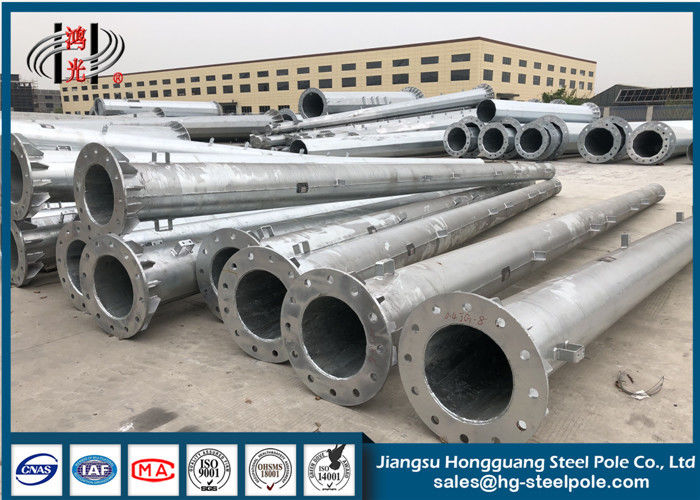

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86
