|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.|
|Delivery Time:||2 weeks per container after PO / drawing / prepayment confirmed|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Material:||Q345||Once Forming:||16m Once Forming Without Joint|
|Voltage Grade:||220KV||Welding:||AWS D1.1 Standard|
|Shape:||Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered，etc||Life Period:||More Than 25 Years, It Is According To Installing Environment|
|Galvanization:||Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.|
transmission line pole,
electrical power poles

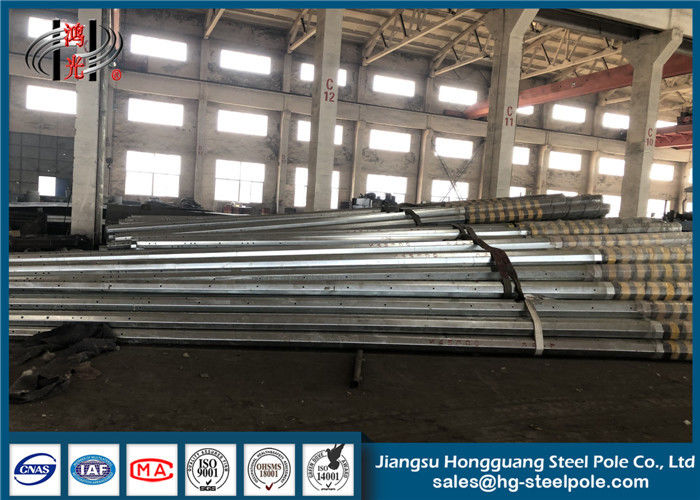

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.
1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience
10). ODM, OEM Acceptable
11). Technical Support by E-mail
1.Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.
Material standard :ASTM GR65
2.Cuting :Cuting the raw material that have meet all the standard required into different length and width .
3.Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .
4.Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.
5.Dimension verify :Afer welding ,check the diameter ,length according to the drawing .
6.Flange:Weld the flange into the main pole
Welding standard:ASTM A 252-1998 or ASTM A 714-1999
7.Drill:Drill the hole at the right location as requested in the drawing.
8.Calibration:check the straightness and diameter to make sure it meet all the requirement .
9.Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized
10.Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971
11.Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.
12.Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .
13.Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data
