Octagonal Electric Steel Pole , Steel Anti Corrosive power distribution poles Q345
  • Octagonal Electric Steel Pole , Steel Anti Corrosive power distribution poles Q345
  • Octagonal Electric Steel Pole , Steel Anti Corrosive power distribution poles Q345

Octagonal Electric Steel Pole , Steel Anti Corrosive power distribution poles Q345

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Q345
Once Forming:
16m Once Forming Without Joint
Voltage Grade:
110KV
Welding:
AWS D1.1 Standard
Shape:
Conical
Wall Thickness:
3.75mm
Galvanization:
Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

transmission line pole

,

electrical power poles

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electric Steel Pole Steel Octagonal Anti-corrosive Power Transmission Pole Q345

Product Description:



Products
  • Electric Steel Pole Steel Octagonal Anti-corrosive Power Transmission Pole Q345

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Galvanization
  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Advantages:

1). Short Construction Cycle
2). Less Land Occupation
3). Low Overall Cost
4). Easy Installation and Maintenance
5). Weather Resistance
6). Anti-corrosion
7). ODM & OEM are available
8). Capable to Handle Volume Orders
9). Provide Professional Design by Our Experienced R&D Engineers



Process:

1.Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.
Material standard :ASTM GR65
2.Cuting :Cuting the raw material that have meet all the standard required into different length and width .

3.Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .
4.Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.
5.Dimension verify :Afer welding ,check the diameter ,length according to the drawing .
6.Flange:Weld the flange into the main pole
Welding standard:ASTM A 252-1998 or ASTM A 714-1999
7.Drill:Drill the hole at the right location as requested in the drawing.
8.Calibration:check the straightness and diameter to make sure it meet all the requirement .
9.Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized
10.Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971
11.Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.
12.Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .
13.Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data

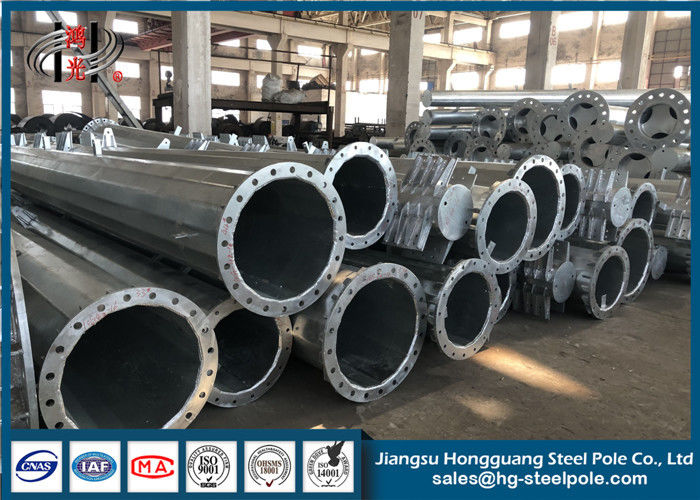

Octagonal Electric Steel Pole , Steel Anti Corrosive power distribution poles Q345 0

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86
