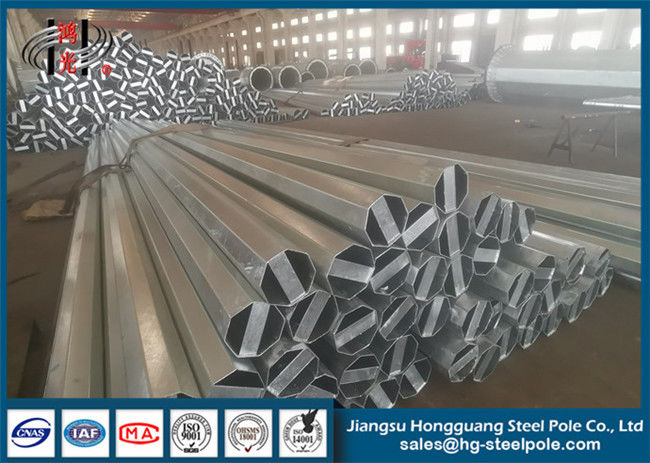

NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345
Product Description:
The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
Product Specification:
| Products |
- NEA Standard Octagonal Galvanized Steel Pole ISO9001-2008 Certification Q235 Q345
|
| Application |
- Electrical Power Transformer Substation
|
| Voltage Grade |
|
| Once Forming |
- 11.9m Once forming without joint
|
| Thickness |
|
| Welding |
- According to AWS D 1.1, CO2 welding or submerged arc auto methods
|
|
Production Process
|
- Raw material test → Cutting →Molding or bending →Welding
(longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages
|
|
Shape
|
-
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered
|
Pole Accessories:
1. Pole Shaft
2. Top Cap
3. Base Plate
4. Butt Strip Plate
5. CrossArm
6. Anchor Bolts
7. Grounding Nut & Bolts
8. Name Plate
9. Climbing Rungs
10. Template
11. Bituminous Painting if needed
Inquiry Information:
Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.
Packaging&Shipping:
Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.
* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.
