45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345

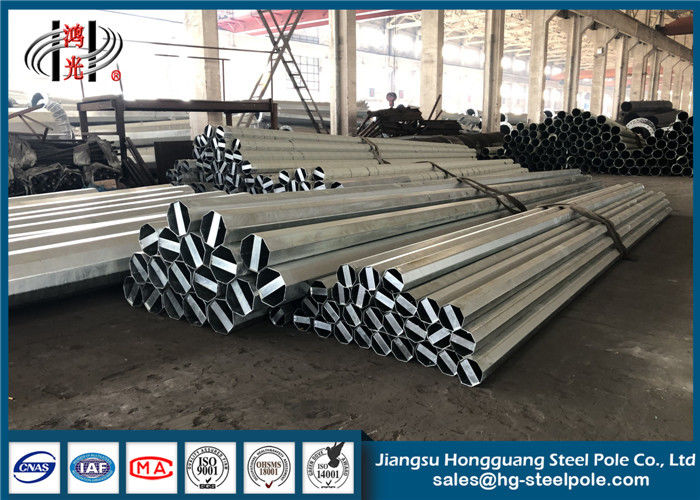

  • 45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345
  • 45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345

45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
69KV
Application:
Transmission Line Project
Shape:
Octagonal
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Wall Thickness:
4.0mm
Material:
Q345
High Light:

hot dip galvanized pole

,

galvanized light pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiate
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345



Product Description:



Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.





Hot dip galvanization:
All our products must be hot dip galvanized which can keep the steel poles without rust more than 30 years.Our standard for a good hot dip galvanization steel pole is same color of the zinc coating without dent mark,no exposed iron and hang of zinc of defect. Normally speaking,the thickness of the zinc coating is up to the materials thickness.The thicker the material is, the thicker the zinc coating will be.









Production Process:











  • Raw material test

  • Cutting

  • Bending

  • Welding (longitudinal )

  • Dimension verify

  • Flange welding

  • Hole drilling

  • Calibration

  • Deburr

  • Galvanization or powder coating or Bituminous painting

  • Recalibration

  • Packages

45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345 0



Product Specification:



Products
  • 45FT Polygonal Conical Hot Dip Galvanized Steel Pole With Climbing Rung Q345
Application
  • Power transmission and distribution Line
Material
  • Q345
Galvanization
  • Hot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
  • Average thickness ≥86um
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Shape
  • Octagonal
Joint
  • Overlap joint

Painting

  • Bitumen Painted according to customer's requirement

Once Forming

  • 12m Once forming without joint



Standard Accessories:

- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts





Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86
