Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised
  • Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised
  • Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised

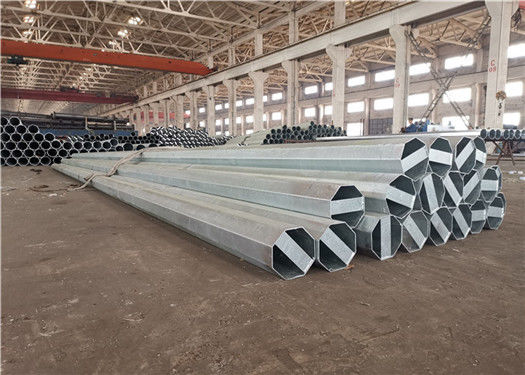

Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Design Load:
450daN
Length:
12m
Material:
Q235, Q345
Shape:
Octagonal
Appearance Treatment:
Hot-dip Galvanized
Welding:
CO2 Welding Or Submerged Arc Auto Methods
High Light:

transmission line pole

,

electrical power poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



Bangladesh Q355 12m 450 Dan Hot Dip Galvanized Power Transmission Poles





Product Description:



Products

  • Bangladesh Q355 12m 450 Dan Hot Dip Galvanized Power Transmission Poles

Application

  • Electrical Power Transmission/Distribution Line Project

Voltage Grade

  • 10-110KV

Shape

  • Octagonal conical (Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine)

Material

  • Hot Roll Steel Q355

Wall thickness

  • 4.0mm

Welding

  • Welding of substation structure complies with AWS D1.1 standard.

  • CO2 welding or submerged arc auto methods

Joint

  • Joint with flange mode.

Galvanization

  • Hot dip galvanization of substation structure is in accordance with American standard ASTM A123.

Painting

  • Bitumen Paint

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle

  • Low Overall Cost

  • Anti-corrosion

  • More than 15 Years Design & Manufacture Experience

  • Rich Exporting Experience

  • Technical Support by E-mail

Export Country
  • Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo





Product Description:



Transmission pole includes suspension pole, tensile pole, strain pole, angle pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel power transmission poles are overlaped insert type and direct burried. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.In addition, our company have become a qualified supplier of SGCC and NGCP. Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost.



Our round tapered poles are available in mounting height from 3 to 14m(one piece joint),two moulds are available with us: one taper is 11/‰,the other 14/‰,poles of taper 10-15‰ can be made. The poles can be used for post top or bracket arm applications. Integral bracket arm arrangements are also available.



Product Details:



Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised 0





Standard Accessory:


- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder







Production Process Flow Chat:



Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery



Bangladesh Q355 12m 450 Dan Power Transmission Poles Hot Dip Galvanised 1
