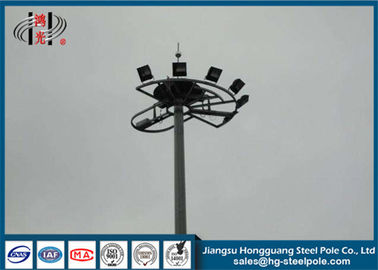

Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole
  • Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole
  • Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole

Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Name:
Flood Light Pole
Material:
Q345
Finishing:
Hot-dip Galvanized
Height:
15m
Shape:
Conical
Certificate:
ISO9001-2008
High Light:

street lights pole

,

high mast lighting pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



Hot Dip Galvanized Steel Conical High Mast Light Pole Q345 ISO9001



Product Description:

High mast light pole's welding complies with AWS D1.1 standard. Our company adopt CO2 welding or submerged arc auto methods which promise no fissure, scar, overlap, layer or other defects will be left after hot dip galvanization. If customers need any other requirements of welding, we also can make adjustment ad your request. In addition, our high mast light poles are hot dip galvanized and could be powder coated and painted as per customers’ requests which allows more than 25 years' life period.


The high mast light pole have different types, we can install all the lights in one direction or install in a circle direction. Also, it can use the lifting system or fixed ladder, We can design it as your request.





Product Specification:



Products
  • Hot Dip Galvanized Steel Conical High Mast Light Pole Q345 ISO9001
Application
  • commercial areas lighting
Material
  •  Q345, Min yield strength: 345MPA
Shape
  • Conical, Tapered
Wind design
  • 30m/s
Wall thickness
  • 6mm
Certificate
  • ISO9001-2008 , AAA credit rating, etc
Welding Technique
  • Automatic submerged arc welding
Resistant
  • Against earthquake of 8.8 grade. Wind speed as design.
Finishing
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
Lamp power
  • 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz



Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole 0



Product Advantages:

JSHG's high mast light pole has many advantages:1. We have a professional design team to provide services for customers. Provide design drawings. 2. ISO 9001:2008 certificate provided .3.QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.



Product Manufacturing:

Raw material: Q345. We get the raw material checked in our lab test room by our advanced spectrograph machine to check the elements of the steel sheet. If the raw material is not qualified, we'll not use the steel. So in this way, we can control the quality of the telecommunication tower from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.



After the fabrication process as cutting, bending, forming, forming operation, seam welding, we pre-assemble semi-finishing products before hot dip galvanization and powder coating. Before delivery, we will straighten hot dip galvanized telecommunication tower and wrap products according to customers' requirement.



Conical High Mast Light Pole Q345 ISO9001 Hot Dip Galvanised Light Pole 1



Packaging&Shipping:

Usually high mast light pole is wrapped in plastic bags. If the customer has specific requirements, we will package according to the customer's requirements.
