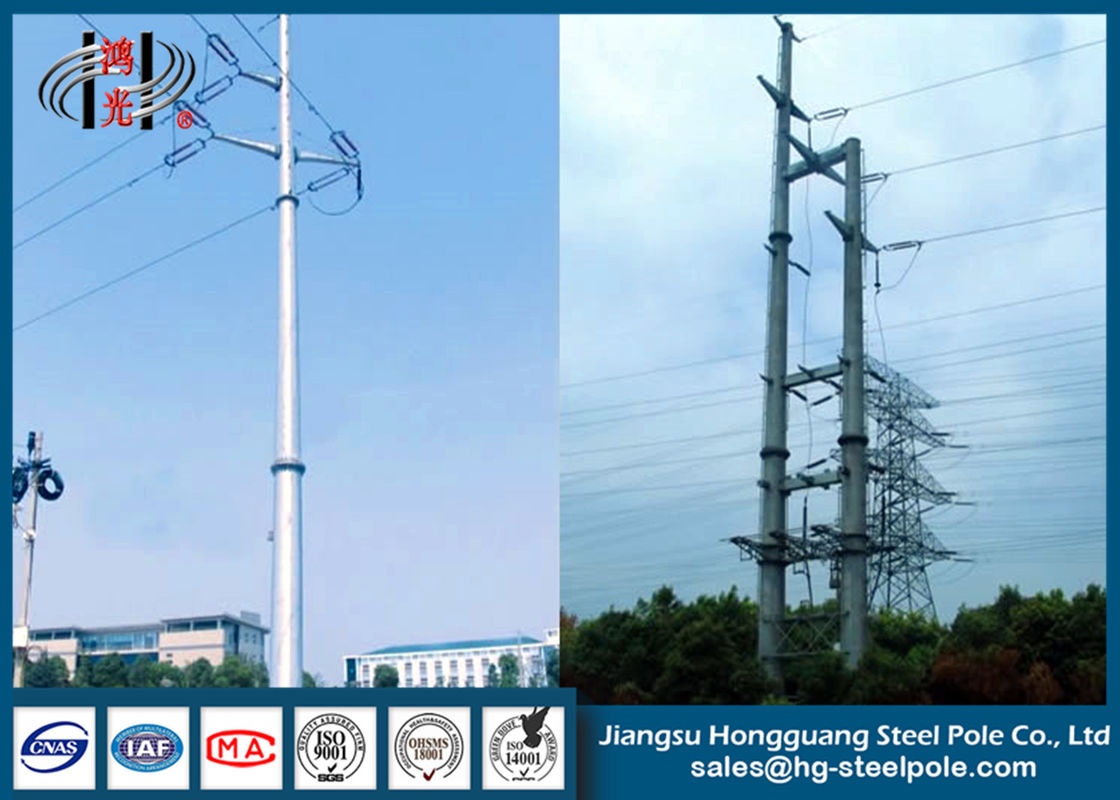

Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line

Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line

Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line

Product Details:

Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV

Payment & Shipping Terms:

Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Application: Electrical Power Transmission And Distribution Line Appearance Treatment: Hot-dip Galvanized / Painting
Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Shape: Round / Polygonal / Conical / Tubular / Tapered
Galvanization: Chinese Standard GB/T 13912-2002 And American Standard ASTM A123 Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods

Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line

Specifications:

Application

  • Overhead Electrical Power transmission and distribution line

Type

  • Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc.

Voltage Grade

  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

  • 2~30mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  • According to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle
  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers



Description:

Hot Dip Galvanized Electrical Power Steel Poles play an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.

The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years
As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line




Quality Control Management


JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
and sulfur microcomputer analyzer etc.
Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.

Engineering and Design Management



Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line

“Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line



Since the establishment, JSHG have put forward thousands of conical pole design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.



Production Process Flow Chart:



Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line


Packaging & Shipping:



Galvanised Steel Tapered Power Transmission Poles for Overhead Power Line



Terms and Conditions:


1.  Price Term: EXW, FOB, CFR or CIF.

  • The price includes pole shaft, base plate, cross arm and anchor bolt.
  • Shipping seaport: Shanghai Seaport.
  • Please provide drawings if you have so that we can calculate the accurate price for you.
  • We also provide design according to your requests, if you don't have drawings.

 2.  MOQ: One 40FT Container.
 3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
 4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.
 5.  Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.

 Our Services

  • Reply within 24 Working Hours
  • Factory Direct Sale
  • More than 15 Years Design & Manufacture Experience
  • Capable to Handle Volume Orders
  • High-Quality and Low-Price Products
  • Provide Professional Design by Our Experienced R&D Engineers
  • Rich Exporting Experience
  • ODM, OEM Acceptable
  • Technical Support by E-mail
  • Calling service
