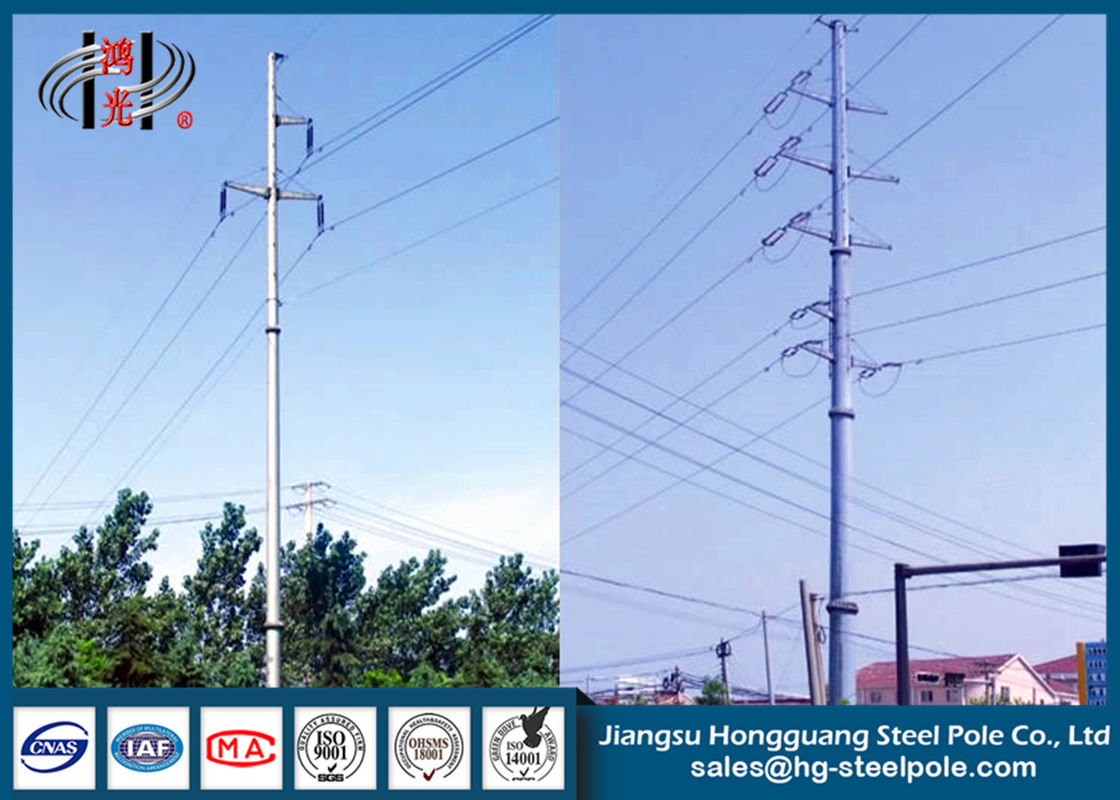

35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized

35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized

    • 35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized
  • 35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP-110KV

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Application: Electrical Power Transmission And Distribution Line Wall Thickness: 30mm
    Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Shape: Round / Polygonal / Conical / Tubular / Tapered
    Galvanization: Chinese Standard GB/T 13912-2002 And American Standard ASTM A123 Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    High Light:

    transmission line pole

    ,

    electrical transmission poles

    35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized



    Specifications:



    Application

    35KV Double Circuit Suspension Type Galvanized Power Steel Tubular Transmission Poles

    Type

    Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc.

    Voltage
    Grade

    10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV,
    230KV, 330KV, 500KV or Others )

    Shape

    Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular,
    Tapered

    Material

    Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37,
    ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel
     material

    Once Forming

    16m Once forming without joint

    Welding

    Welding complies with AWS D1.1 standard.
    CO2 welding or submerged arc auto methods
    No fissure, scar, overlap, layer or other defects
    Internal and external welding makes the pole more beautiful in shape
    If customers need any other requirements of welding, we also can make
    adjustment ad your request

    Joint

    Joint with insert mode, flange mode.

    Wall thickness 2~30mm

    Base plate

    Base plate is square / round / Polygon with slotted holes for anchor bolt and dimension
     as per client’s requirement.

    Galvanization

    Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and
    American standard ASTM A123.

    Painting

    According to clients' request

    Life Period

    More than 25 years, it is according to installing environment

    Advantages

    Short Construction Cycle
    Less Land Occupation
    Low Overall Cost
    Easy Installation and Maintenance
    Weather Resistance
    Anti-corrosion
    ODM & OEM are available
    Capable to Handle Volume Orders
    Provide Professional Design by Our Experienced R&D Engineers


     Description:



    Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



    The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.




    Quality Control Management



    35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized 0
    JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
    and sulfur microcomputer analyzer etc.
    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.

    Production Process Flow Chart:



    35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized 1
    Packaging & Shipping:



    35KV Double Circuit Suspension Type Tubular Steel Pole Galvanized 2



    Terms and Conditions:


    1.  Price Term: EXW, FOB, CFR or CIF.

    • The price includes pole shaft, base plate, cross arm and anchor bolt.
    • Shipping seaport: Shanghai Seaport.
    • Please provide drawings if you have so that we can calculate the accurate price for you.
    • We also provide design according to your requests, if you don't have drawings.

     2.  MOQ: One 40FT Container.


     3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.


     4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.


     5.  Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.

     Our Services

    • Reply within 24 Working Hours
    • Factory Direct Sale
    • More than 15 Years Design & Manufacture Experience
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Products
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Technical Support by E-mail
    • Calling service


    Contact Us


    Jiangsu Hongguang Steel Pole Co., Ltd.


    Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212


    Telephone: +86 510 878 441 56


    Fax: +86 510 878 435 28


    Mobile: +86 138 615 059 69


    Skype:  tangjia870124

    Please feel free to contact us!
