Galvanized Steel 220KV 2.75mm Power Transmission Pole
  • Galvanized Steel 220KV 2.75mm Power Transmission Pole
  • Galvanized Steel 220KV 2.75mm Power Transmission Pole

Galvanized Steel 220KV 2.75mm Power Transmission Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-220KV
Product Details
Voltage:
220KV
Base Plate:
Square/Round/Polygon With Slotted Holes For Anchor Bolt And Dimension As Per Client’s Requirement.
Joint:
Flange Mode
Wall Thickness:
2.75mm
Painting:
According To Clients' Request
Material:
Hot Roll Steel
Color:
Silver
High Light:

220KV Power Transmission Pole

,

2.75mm Power Transmission Pole

,

220KV transmission line pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

220KV Electricity Pole Electric Meter Pole Transmission Pole Galvanised Steel Pole

Product Description:



Products
  • 220KV Electricity Pole Electric Meter Pole Transmission Pole Galvanised Steel Pole

Application
  • Electrical power transmission line

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape
  • Customized

Galvanization
  • American standard ASTM A123.
Base plate
  • As per client’s requirement.



Product Advantages:

The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

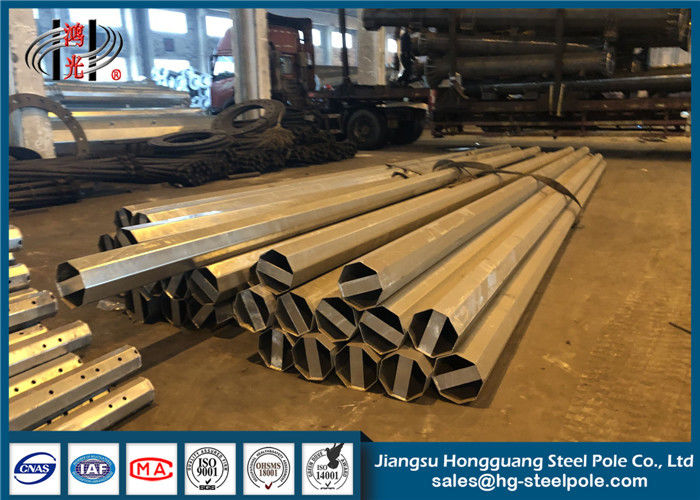

Galvanized Steel 220KV 2.75mm Power Transmission Pole 0



Advantages
1). Short Construction Cycle
2). Less Land Occupation
3). Low Overall Cost
4). Easy Installation and Maintenance
5). Weather Resistance
6). Anti-corrosion
7). ODM & OEM are available
8). Capable to Handle Volume Orders
9). Provide Professional Design by Our Experienced R&D Engineers

Key Specification:

1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100μm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015
