Product Advantages:
1. Short Construction Cycle
2. Low Overall Cost
3. Easy Installation and Maintenance
4. Weather Resistance
5. Anti-corrosion
6. More than 15 Years Design & Manufacture Experience
7. Capable to Handle Volume Orders
8. Provide Professional Design by Our Experienced R&D Engineers
9. Rich Exporting Experience
10. ODM, OEM Acceptable
11. Technical Support by E-mail
Product Description:
Products |
|
Application |
|
Standrad |
|
Painting |
|
Shape |
|
Galvanization |
- Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
|
Base plate |
- Square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
|
Key Specification:
1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height

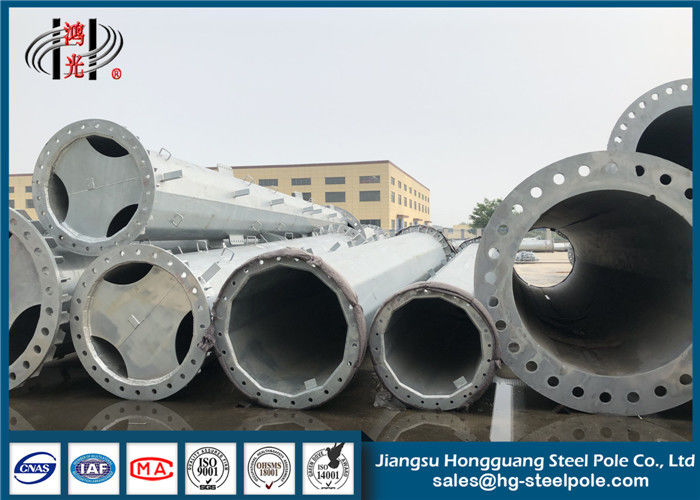

3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100μm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015
Features:
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
Our Services:
1). Reply within 24 Working Hours
2). Factory Direct Sale
3). More than 15 Years Design & Manufacture Experience
4). Capable to Handle Volume Orders
5). High-Quality and Low-Price Products
6). Provide Professional Design by Our Experienced R&D Engineers
7). Rich Exporting Experience
8). ODM, OEM Acceptable
9). Technical Support by E-mail
10). Calling service
