OEM Hot Dip Galvanised Steel Pole For Electrical Power Transformer Substation
  • OEM Hot Dip Galvanised Steel Pole For Electrical Power Transformer Substation
  • OEM Hot Dip Galvanised Steel Pole For Electrical Power Transformer Substation

OEM Hot Dip Galvanised Steel Pole For Electrical Power Transformer Substation

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 And Others Equivalent Steel Material
Once Forming:
16m Once Forming Without Joint
Application:
Electrical Power Transformer Substation
Joint:
Joint With Flange Mode
Shape:
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
Wall Thickness:
3.5mm
Galvanization:
Hot Dip Galvanization Of Substation Structure Is In Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

electric steel pole

,

electric line pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Hot Dip Galvanized Steel Electric Pole Steel Pole For Electrical Power Transformer Substation

Product Description:



Products
  • Hot Dip Galvanized Steel Electric Pole Steel Pole For Electrical Power Transformer Substation

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Galvanization
  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Advantages:

A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

B. ISO 9001:2008 certificate provided .

C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.



Product Line:

Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes. Then after hot dip galvanization, we will check the diameters, galvanization thickness and do the load test according to clients' different requirements and then deliver the poles on time according to the contract.

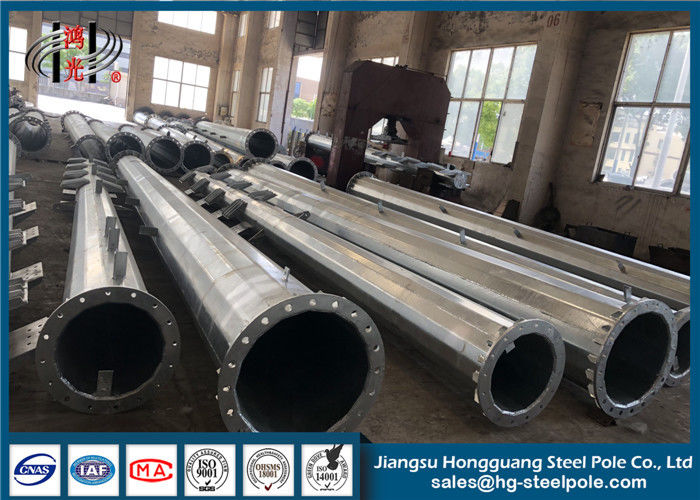

OEM Hot Dip Galvanised Steel Pole For Electrical Power Transformer Substation 0

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86



Terms and Conditions:

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, crossarm and anchor bolt.
Shipping seaport: Shanghai Seaport.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
2. MOQ: One 40FT Container.

3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.
