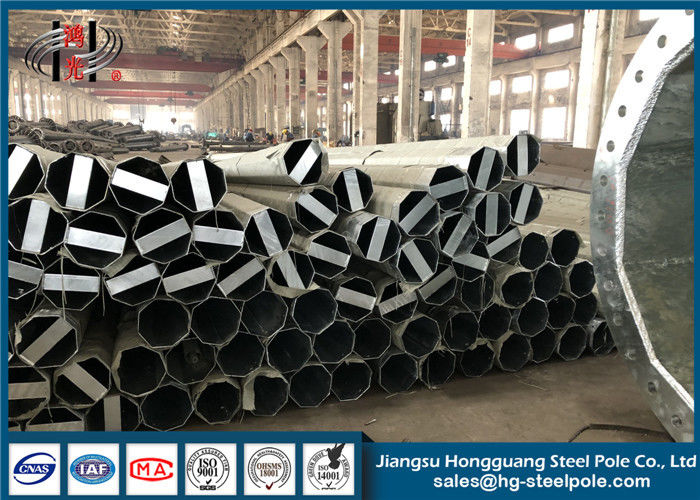

Anti-Corrosive Q345 Steel Electric Pole Stainless Steel Pole For Electrical Power Transformer Substation

Product Description:

The HDG Electrical Steel Electric Poles are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc.

The Steel Tubular Poles price is based on its specification, like say different design with different price, normally depend on pole diameter, material, thickness, qty, etc.

Product Specification:

Product Advantages:

The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 69KV to 220kv

9. Easy install and maintenance.
