Sheet Metal Fabrication Electrical Transmission Poles Easy Installation
  • Sheet Metal Fabrication Electrical Transmission Poles Easy Installation
  • Sheet Metal Fabrication Electrical Transmission Poles Easy Installation

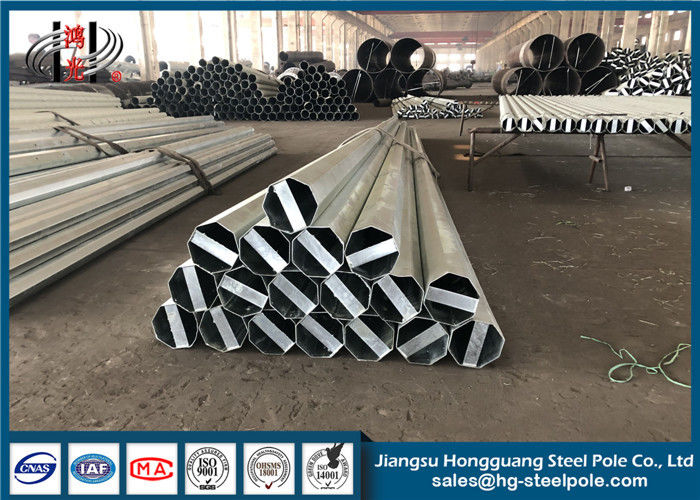

Sheet Metal Fabrication Electrical Transmission Poles Easy Installation

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
Electrical Power Transformer Substation
Shape:
According To Clients' Request
Painting:
According To Clients' Request
Material:
Hot Roll Steel Q235
Joint:
Joint With Insert Mode, Flange Mode.
Voltage Grade:
69-220KV
Once Forming:
16m Once Forming Without Joint
Base Plate:
Base Plate Of Substation Structure Is Square/round/Polygon With Slotted Holes For Anchor Bolt And Dimension As Per Client’s Requirement.
High Light:

electric line pole

,

metal electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Anti-corrosive Q355 Steel Electric Pole Stainless Steel Pole Sheet Metal Fabrication

Product Description:

The HDG Electrical Steel Electric Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:

Products
  • Anti-corrosive Q355 Steel Electric Pole Stainless Steel Pole Sheet Metal Fabrication
Application
  • Electrical Power Transformer Substation
Voltage Grade
  • 69-220KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3mm,4mm,5mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Advantages

  • Easy Installation and Maintenance

Product Advantages:

1). Short Construction Cycle
2). Less Land Occupation
3). Low Overall Cost
4). Easy Installation and Maintenance
5). Weather Resistance
6). Anti-corrosion
7). ODM & OEM are available
8). Capable to Handle Volume Orders
9). Provide Professional Design by Our Experienced R&D Engineers

Sheet Metal Fabrication Electrical Transmission Poles Easy Installation 0

Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Our Services:

1). Reply within 24 Working Hours
2). Factory Direct Sale
3). More than 15 Years Design & Manufacture Experience
4). Capable to Handle Volume Orders
5). High-Quality and Low-Price Products
6). Provide Professional Design by Our Experienced R&D Engineers
7). Rich Exporting Experience
8). ODM, OEM Acceptable
9). Technical Support by E-mail
10). Calling service



Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 69KV to 220kv

9. Easy install and maintenance.
