NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication
  • NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication
  • NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication

NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
Electrical Power Transformer Substation
Shape:
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
Painting:
According To Clients' Request
Material:
Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 And Others Equivalent Steel Material
Joint:
Joint With Insert Mode, Flange Mode.
Voltage Grade:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Once Forming:
16m Once Forming Without Joint
Base Plate:
Base Plate Of Substation Structure Is Square/round/Polygon With Slotted Holes For Anchor Bolt And Dimension As Per Client’s Requirement.
High Light:

electric line pole

,

metal electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication Electrical Poles

Product Description:

The HDG Electrical Steel Electric Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Product Specification:

Products
  • NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication Electrical Poles
Application
  • Electrical Power Transformer Substation
Voltage Grade
  • 11KV-220KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3mm,4mm,5mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Advantages

  • Easy Installation and Maintenance

Product Advantages:

The Hot Dip Galvanized Electrical Power Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.

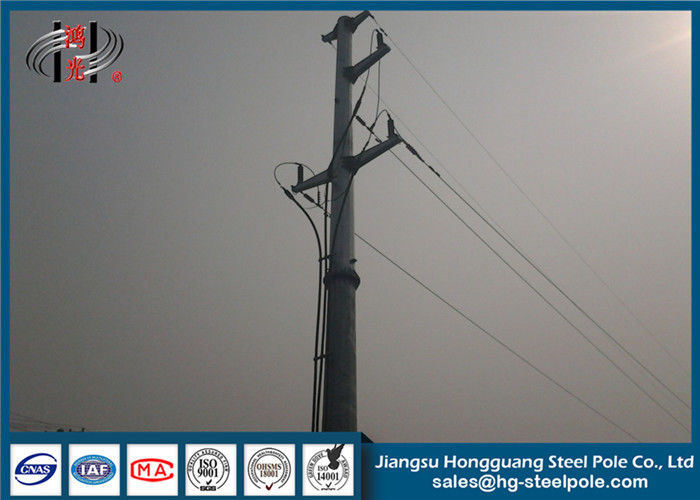

NEA Standard Steel Electric Pole High Voltage Steel Power Pole Sheet Metal Fabrication 0

Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Our Services:

1). Reply within 24 Working Hours
2). Factory Direct Sale
3). More than 15 Years Design & Manufacture Experience
4). Capable to Handle Volume Orders
5). High-Quality and Low-Price Products
6). Provide Professional Design by Our Experienced R&D Engineers
7). Rich Exporting Experience
8). ODM, OEM Acceptable
9). Technical Support by E-mail
10). Calling service
