Overlap Connection Galvanized Steel Pole Electric Power Distribution Equipment
  • Overlap Connection Galvanized Steel Pole Electric Power Distribution Equipment
  • Overlap Connection Galvanized Steel Pole Electric Power Distribution Equipment

Overlap Connection Galvanized Steel Pole Electric Power Distribution Equipment

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
Electrical Transmission Line
Shape:
Polygonal / Conical
Painting:
Bitumen Paint
Connection Structure:
Overlap Connection
Welding:
According To AWS D 1.1, CO2 Welding
Once Forming:
12m Once Forming Without Joint
High Light:

hot dip galvanized pole

,

galvanized light pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Galvanized Steel Pole Electric Power Distribution Equipment H15m Q345



Product Description:

The material is in accordance with NF EN 10025 Standard and NF EN 10149 Standard,it has the following property.
- Yield Strength=355N/mm2
- Toughness remains the same under 20 degrees below zero.
- Galvanization is in accordance with NFA35503 Standard Class 1.



Manufacture Tolerance
- Component Length:-25mm to 75mm
- Straightness:2mm/m
- Twisting degree:1°per 3 meters length
- Ovalisation:Maximum is 3%
- The average diameter:+/-0.5%
- Slip length:+/-150mm


But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Product Specification:



Products
  • Galvanized Steel Pole Electric Power Distribution Equipment H15m Q345
Application
  • Electrical Power Transformer Substation
Voltage Grade
  • 13.8KV
Once Forming
  • 11.9m Once forming without joint
Thickness
  • 4.0mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.



Product Advantages:



1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
5). Anti-corrosion
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience
10). ODM, OEM Acceptable
11). Technical Support by E-mail



Application Scope:



Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

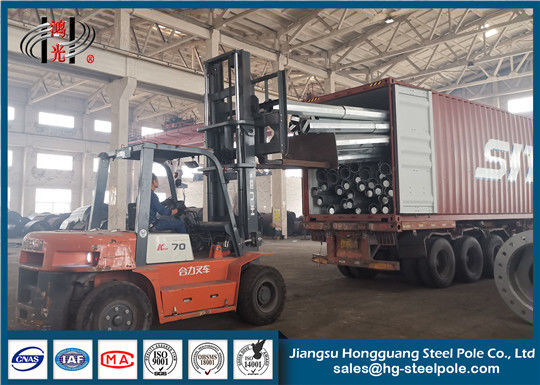

Packaging&Shipping:



Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.



Overlap Connection Galvanized Steel Pole Electric Power Distribution Equipment 0
