Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure
  • Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure
  • Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure
  • Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure

Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
According To Clients' Request
Painting:
69-220KV
Appearance Treatment:
Hot-dip Galvanized
Connection Structure:
Overlap/flange Connection
Joint:
Joint With Insert Mode, Flange Mode.
Shape:
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
Once Forming:
16m Once Forming Without Joint
Thickness:
3.0mm
High Light:

electric line pole

,

metal electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electrical Post Steel Tubular Pole Steel Electric Pole Sheet Metal Fabrication for Substation Structure

Product Description:

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:

Products
  • Electrical Post Steel Tubular Pole Steel Electric Pole Sheet Metal Fabrication for Substation Structure
Application
  • Power Transformation
Voltage Grade
  • 69KV-220KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3.0mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Galvanization

  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Product Advantages:

A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

B. ISO 9001:2008 certificate provided .

C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.



Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

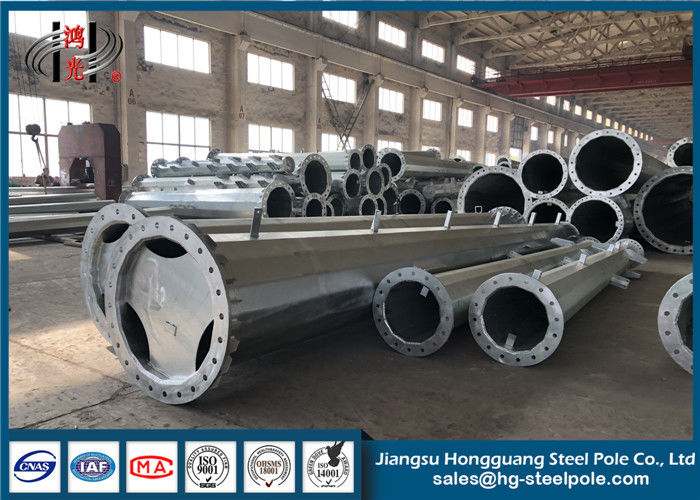

  Electrical Post Steel Electric Pole Sheet Metal Fabrication For Substation Structure 0

Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.
