Flange Connection Power Distribution Poles For Power Transmission And Distribution Line
  • Flange Connection Power Distribution Poles For Power Transmission And Distribution Line
  • Flange Connection Power Distribution Poles For Power Transmission And Distribution Line

Flange Connection Power Distribution Poles For Power Transmission And Distribution Line

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
Power Transformation
Voltage Grade:
69-220KV
Appearance Treatment:
Hot-dip Galvanized
Connection Structure:
Overlap/flange Connection
Joint:
Joint With Insert Mode, Flange Mode.
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Once Forming:
16m Once Forming Without Joint
Thickness:
3.0mm, 3.5mm, 4.0mm
High Light:

electric line pole

,

metal electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electrical Post Steel Electric Pole Sheet Metal Fabrication for Power Transmission and Distribution Line

Product Description:

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:

Products
  • Electrical Post Steel Electric Pole Sheet Metal Fabrication for Power Transmission and Distribution Line
Application
  • Power Transformation
Voltage Grade
  • 69KV-220KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3.0mm, 3.5mm, 4.0mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Life Period
  • More than 25 years, it is according to installing environment

Galvanization

  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Product Advantages:

The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



Application Scope:

As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

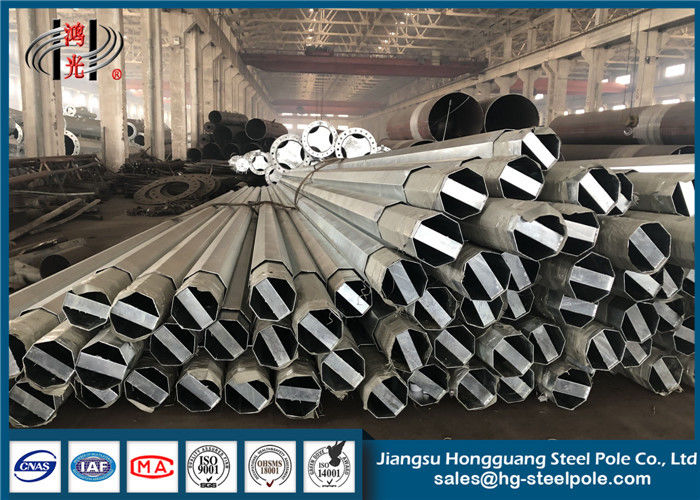

  Flange Connection Power Distribution Poles For Power Transmission And Distribution Line 0

Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.
