Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time
  • Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time
  • Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time

Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
10KV ~ 500KV
Welding:
Welding Complies With CSA And AWS, AWS D1.1 Standard.
Name:
Steel Tubular Pole
Connection Structure:
Overlap / Flange Connection
Safety Factor:
Safety Factor For Conducting Wine : 8; Safety Factor For Grounding Wine : 8
Certificate:
ISO9001-2008
Joint Of Poles:
Insert Mode,innerflange Mode,face To Face Joint Mode
Wall Thickness:
2.3-18mm
High Light:

galvanised steel poles

,

mono pole tower

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



Burial Type Steel Tubular Pole Hot Dip Galvanized Metal Power Pole 3mm Thickness Long Life Time

Product Specification:



Products
  • Burial Type Steel Tubular Pole Hot Dip Galvanized Metal Power Pole 3mm Thickness Long Life Time
Application
  • Power transmission and distribution Line
Voltage Grade
  • 10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others
Advantage
  • Weather Resistance

  • Anti-corrosion

  • ODM & OEM are available

  • Capable to Handle Volume Orders

  • Provide Professional Design by Our Experienced R&D Engineers

Quality Standard
  • ISO9001:2000,AAA credit rating
Shape
  • Round / Polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods

  • No fissure, scar, overlap, layer or other defects

  • If customers need any other requirements of welding, we also can make adjustment ad your request

Application
  • Power transmission and distribution Line
Appearance Treatment
  • Hot-dip galvanized / painting



Product Description:

 The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.

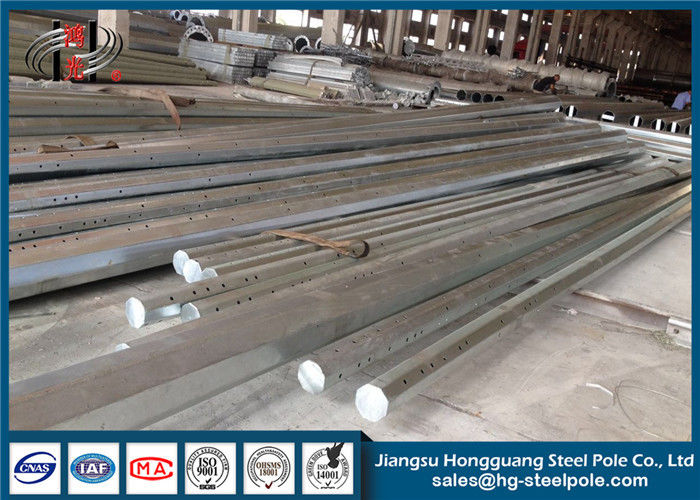

Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time 0

Product Advantages:



1). Short Construction Cycle

Our factory has a professional technical and production team to ensure the completion time of the product.

2). Low Overall Cost

Our factory and raw material factory have long-term cooperation to ensure low cost of products.

3). Weather Resistance

The quality of our products is high quality and resistant to bad weather.

4). Provide Professional Design by Our Experienced R&D Engineers

5). Rich Exporting Experience

6). ODM, OEM Acceptable

7). Technical Support by E-mail



Packaging&Shipping:

 * Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Burial Type Steel Tubular Pole Metal Power Pole 3mm Thickness Long Life Time 1



Engineering and Design Management:

 “ Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.
