Steel Tubular Pole
>
|
|
| Place of Origin | China |
| Brand Name | JSHG |
| Certification | ISO/CNAS/IAF/CA |
| Model Number | HG-SP |

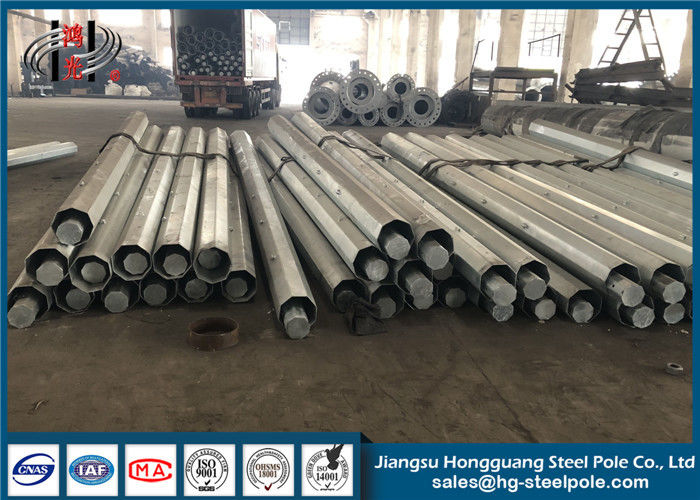

220KV Q345 Anti-corrosive Steel Tubular Pole Overhead Transmission Electrical Power Pole
Round tapered(conical) street light poles are most widely used worldwide in street lighting. By utilizing a wide range of advanced equipments, Shuguang design and manufacture steel round tapered poles and brackets in various patterns to conform to variety of requirements from our customers all over the world.
Our round tapered poles are available in mounting height from 3 to 14m(one piece joint),two moulds are available with us: one taper is 11/‰,the other 14/‰,poles of taper 10-15‰ can be made. The poles can be used for post top or bracket arm applications. Integral bracket arm arrangements are also available.
| Products |
|
| Application |
|
| Voltage Grade |
|
| Once Forming |
|
| Shape |
|
| Welding |
|
| Joint |
|
|
Painting |
|
|
Galvanization |
|
1).Short Construction Cycle
2).Low Overall Cost
3).Easy Installation and Maintenance
4).Weather Resistance
5).Anti-corrosion
6).More than 15 Years Design & Manufacture Experience
7).Capable to Handle Volume Orders
8).Provide Professional Design by Our Experienced R&D Engineers
9).Rich Exporting Experience
10).ODM, OEM Acceptable
11).Technical Support by E-mail
- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts
Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Tip Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.
Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
