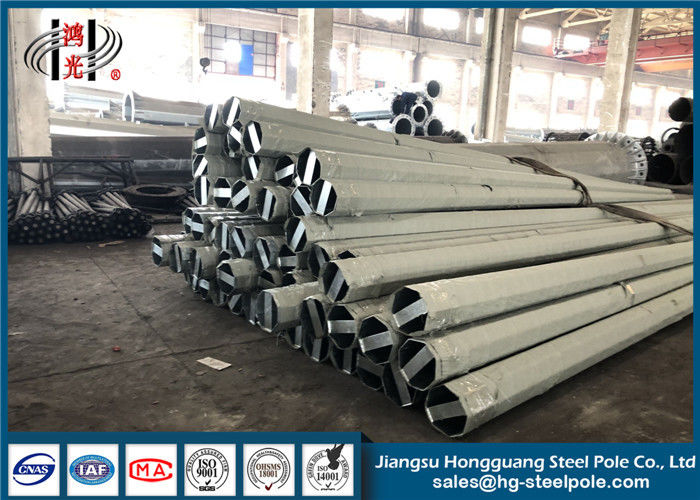

220KV Q345 Anti-corrosive Steel Tubular Pole Electrical Power Pole
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.
3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.
4) Pole Height: Transmission pole ≥ 15M
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
| Products |
|
| Application |
|
| Voltage Grade |
|
| Once Forming |
|
| Shape |
|
| Welding |
|
| Joint |
|
|
Painting |
|
|
Galvanization |
|
1.Short Construction Cycle
2.Low Overall Cost
3.Easy Installation and Maintenance
4.Weather Resistance
5.Anti-corrosion
6.More than 15 Years Design & Manufacture Experience
7.Capable to Handle Volume Orders
8.Provide Professional Design by Our Experienced R&D Engineers
9.Rich Exporting Experience
10.ODM, OEM Acceptable
11.Technical Support by E-mail
- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts
Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Tip Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.
Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
