Steel Tubular Pole
>
|
|
| Place of Origin | China |
| Brand Name | JSHG |
| Certification | ISO/CNAS/IAF/CA |
| Model Number | HG-SP |
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.
3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.
4) Pole Height: Transmission pole ≥ 15M
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance
11) Packages: Normally covered by sack or as customer’s requirement.
12) Voltage:10-550KV
| Products |
|
| Application |
|
| Voltage Grade |
|
| Galvanization |
|
| Shape |
|
| Welding |
|
| Joint |
|
| Surface treatment |
|

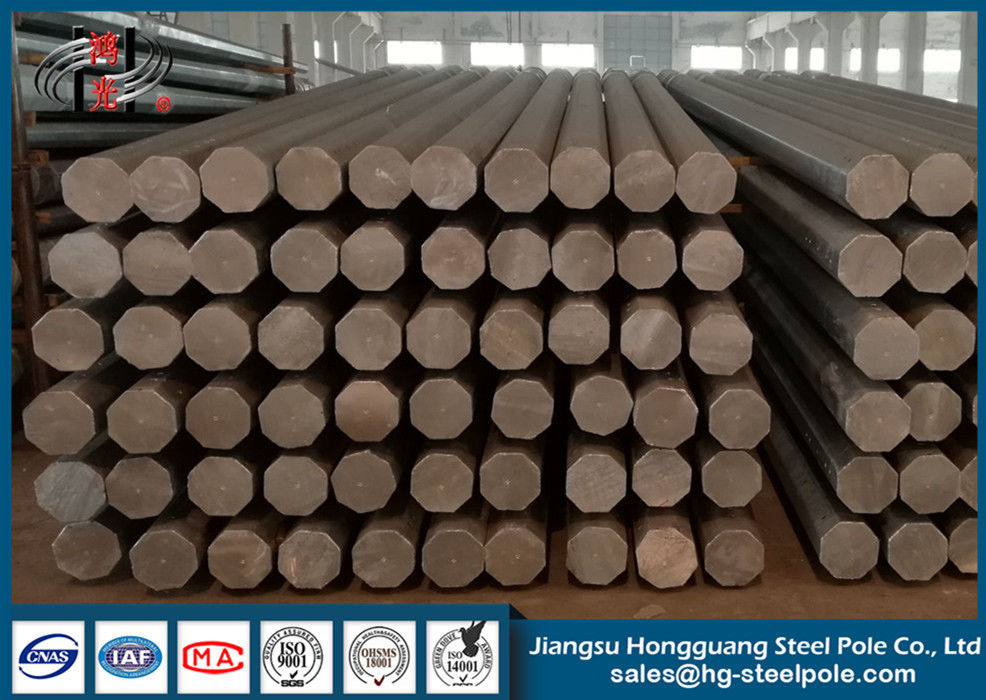

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.
Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Tip Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.
