Steel Tubular Pole
>
|
|
| Place of Origin | China |
| Brand Name | JSHG |
| Certification | ISO/CNAS/IAF/CA |
| Model Number | HG-SP |

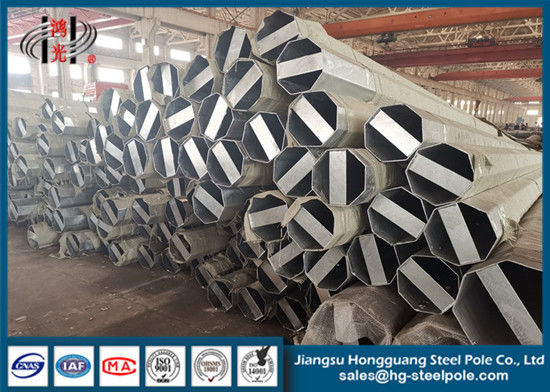

40FT 3.0mm Thick Q355 Steel Tubular Pole Galvanized And Bitumen Painted
Jiangsu Hongguang Steel Pole Co., Ltd has passed the ISO 9001 quality management system. And we have our own Lab to do the chemical and mechanical test. For example, we test the raw material component content and the strength when we purchase the raw material. And if the material does not pass the test,we’ll not use it to produce our poles. So customers can be assured that we always manufacture the good quality poles. Meanwhile, our factory has the AMT ( Advanced Manufacturing Technology ), all the purposes are to provide high-quality good poles all over the world.
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
|
China-GB |
America-ASTM |
Equivalent |
|
Q235 |
Grade D |
SS400,S235JO |
|
Q345 |
Grade50[345] |
S355JR |
|
Q420 |
Grade60[415] |
S420NL |
|
Q460 |
Grade65[450] |
S460NL |
|
Products |
|
|
Voltage Grade |
|
|
Galvanization |
|
|
Welding |
|
|
Life Period |
|
|
Surface treatment |
|
|
Advantages |
|
| Product process chat |
|
JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.
Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.
Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT
|
Height (ft) |
Thickness (mm) |
Butt Diameter (mm) |
Tip Diameter (mm) |
Design Load (kg) |
Yield Stress (MPA) |
Zinc Coating (microns) |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 3.0 | 328 | 127 | 500 | 345 | 86 |
The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.
