Q345 Material 30FT 3mm Thick Hot Dip Galvanized Steel Tubular Pole

Product Description:

Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.

Raw Material

Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.

Product Specification:

Product Test:

JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

NEA Standard Specification:

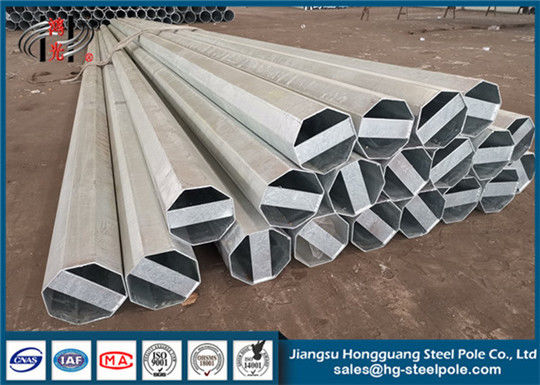

Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT

Production Process:

• Raw material test
• Cutting
• Bending
• Welding (longitudinal )
• Dimension verify
• Flange welding
• Hole drilling
• Calibration
• Galvanization or powder coating or Bituminous painting
• Recalibration
• Packages
