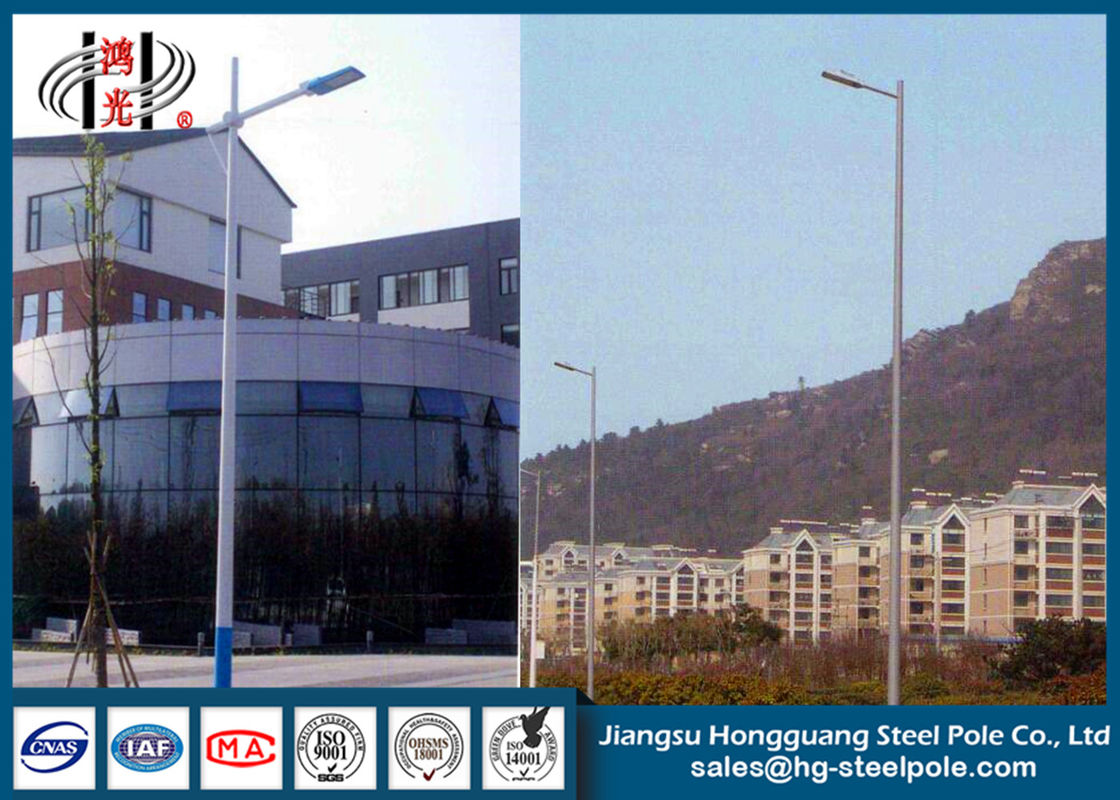

10m15m 20m Polygon Outdoor Lighting Poles, Street Light Solar Poles Galvanization Steel

Product Description:

Material
The material we use is from Tai steel. According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.For the street light pole,we generally choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.

Shape of Pole
Round conical.Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine

Arms
Double arms are in the shape and dimension as per customer's requirement

Welding
Welding complies with AWS D1.1 standard. No fissure, scar, overlap, layer or other defects will be left on the pole.Internal and external welding makes the pole more beautiful in shape.

Base plate
Base plate is square in shape with slotted holes for anchor bolts and dimension as per customer's requirement

Galvanizing
Hot dip galvanization with thickness of 80-100μm average. Inside and outside surface anti-corrosion treatment by hot dipping acid. Zinc coating is more than 85 um thick, which is in accord with GB/T13912-92 standard.

Surface Treatment
Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
Could be powder coated or painted according to clients' request

Electroshock resistant protective grade Grade Ⅰ

The casing anti-corrosion performance Class Ⅱ

Working atmosphere of lighting fixture -35 °C~+45 °C

Lamp power 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz

Torlance of the diensmtion +- 2%

Optical assembly of lighting fixture IP 65

Electroshock resistant protective grade Grade Ⅰ

The casing anti-corrosion performance Class Ⅱ

Working atmosphere of lighting fixture -35 °C~+45 °C

Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode, innerflange mode ,face to face joint mode .

Wind Speed 160 Km/Hour

Standard ISO 9001:2015

Product Specification:

Product Advantages:

1).Short Construction Cycle
Our factory has a professional technical and production team to ensure the completion time of the product.
2).Low Overall Cost
Our factory and raw material factory have long-term cooperation to ensure low cost of products.
3).Weather Resistance
The quality of our products is high quality and resistant to bad weather.
4).Provide Professional Design by Our Experienced R&D Engineers
5).Rich Exporting Experience
6).ODM, OEM Acceptable
7).Technical Support by E-mail

Quality Control Management

JSHG has passed the ISO9001 quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

Meanwhile, it has formed a scientific and strict quality mangement system, which effectively and strictly guarantees the quality control of products form raw material to finished products.

Trade Terms:

1. Prices conditions

Price can be FOB, CIF ,EXW, which includes pole shaft, base plate, crossarm and anchor bolt.

Shipping seaport: Shanghai Seaport.

Please provide drawings if you have so that we can calculate the accurate price for you.

We also provide design according to your requests, if you don't have drawings.

2. What will be the delivery time and what will be the mode of payment?
We have large quantities in stock for normal type. Re special color and products sizes it needs 7days.
The payment can be L/C, T/T or Western Union.

3. Could you please send me the sample for the same. So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.

Inquiry Detail:

If customers need our company to design the high mast light pole , following technology information are required:

1. light pole height
2. wind design
3.safety factor
4. lamp light quantity
5.wall thickness
6. appearance requirement
Please provide drawings if you have so that we can calculate the accurate price for you.
