10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole
  • 10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole
  • 10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole

10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
10-500KV
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Material:
Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 And Others Equivalent Steel Material
Certificates:
ISO9001-2008 , AAA Credit Rating, Etc
Appearance Treatment:
Hot-dip Galvanized / Powder Coated / Painting
Once Forming:
16m Once Forming Without Joint
Application:
Power Transmission And Distribution Line
Shape:
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc)
High Light:

steel power pole

,

power distribution poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



Metal Power Pole Transmission Poles Electrical Power Pole with Galvanized



Product Description:

Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.



Product Specification:

 Products

  • Metal Power Pole Transmission Poles Electrical Power Pole with Galvanized

Application

  • Power transmission and distribution Line

Voltage Grade

  • 10KV ~ 500KV

Welding

  • Welding of galvanized steel power pole complies with AWS D1.1 standard.

  • CO2 welding or submerged arc auto methods

  • No fissure, scar, overlap, layer or other defects

  • Internal and external welding makes the galvanized steel power pole more beautiful in shape

  • If customers need any other requirements of welding, we also can make adjustment ad your request

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)

Base plate

  • Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Thickness

  • 2 mm to 30 mm

Joint

  • Joint with insert mode, flange mode.

Surface Treatment

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 Can be powder coated or painted according to clients' request

Life Period

  • More than 25 years, it is according to installing environment



Product Advantages:

1.Short Construction Cycle
2.Low Overall Cost
3.Easy Installation and Maintenance
4.Weather Resistance
5.Anti-corrosion
6.More than 15 Years Design & Manufacture Experience
7.Capable to Handle Volume Orders
8.Provide Professional Design by Our Experienced R&D Engineers
9.Rich Exporting Experience
10.ODM, OEM Acceptable
11.Technical Support by E-mail




Application Scope:

Electric power tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

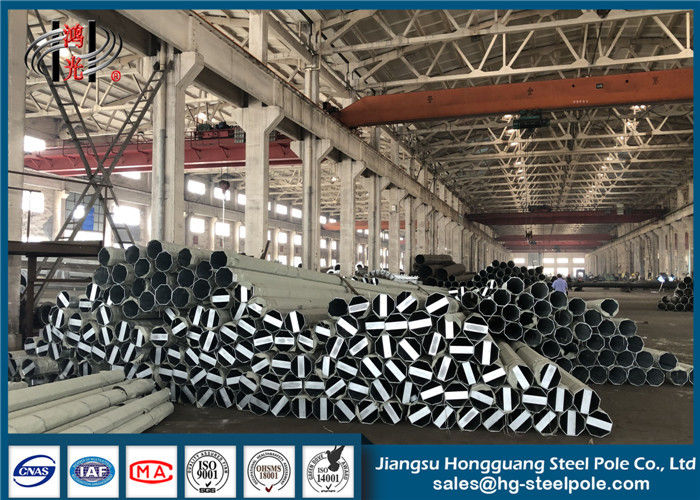

10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole 0



Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.



Company Information:
10-500KV Transmission Steel Power Pole With Galvanized , Metal Power Pole 1
JIANGSU HONGGUANG STEEL POLE CO., LTD.
With over 15 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.



Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.
