|Place of Origin:||China|
|Minimum Order Quantity:||One 40 HQ Container|
|Packaging Details:||* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.|
|Delivery Time:||2 weeks per container after PO/drawing/prepayment confirmed|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Voltage Grade:||350KV||Welding:||AWS D1.1|
|Zinc Coating:||≥ 86 μm||Application:||Transmission Line|
|Joint Of Poles:||Flange Mode||Material:||Q345|

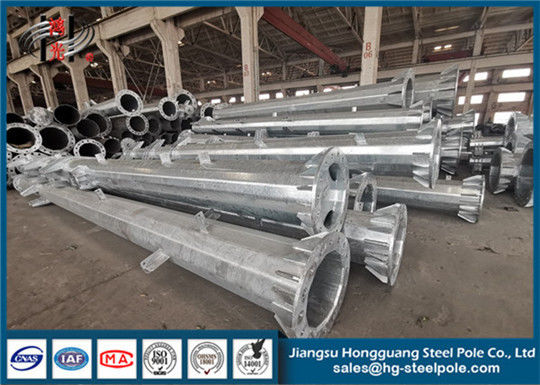

Q345 35KV Anti - Rust Tubular Steel Pole For Transmission Line Project
Transmission Line steel tubular pole includes suspension steel tubular pole, tensile steel tubular pole, strain steel tubular pole, angle steel tubular pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel tubular poles are connected with outer flange and burried with anchor bolt. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years. As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.
The steel tubular poles need short construction cycle and lower overall cost, it is easier for workers to install and do maintenance work. Due to hot dip galvanization, it resist from weather and corrosion. With more than 20 years' manufacturing experience, our company is capable to handle volume orders and provide professional design by our experienced R&D engineer. In addition, ODM&OEM are available. In addition, we have exported to many foreign countries, like Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo , etc,
- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder
Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery
Steel tubular poles are covered by Plastic Wrap or Mat or according to client's requests.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums.
“Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Please feel free to contact us!
Contact Person: Zoe Tang
Voltage Grade: 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Connection structure: Overlap / flange connection
Safety Factor: Safety factor for conducting wine : 8; Safety factor for grounding wine : 8
