Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories

Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories

    • Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories
    • Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories
  • Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10KV ~ 500KV Welding: Welding Complies With CSA And AWS, AWS D1.1 Standard.
    Shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, Etc Tolerance: +-2%
    Safety Factor: Safety Factor For Conducting Wine : 8; Safety Factor For Grounding Wine : 8 Tensile Strength: 470Mpa ~ 630Mpa
    Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Wind Pressure: 5-190 KM/H



    Anti-corrosive Steel Galvanized Electrical Steel Tubular Pole Self Supporting With Electric Accessories



    Product Description:

    Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.

    But to design the practical poles for customers use, normally we need customers to provide us some parameter, like as the followings :

    - Pole top design load
    - Where is the position of the load, the distance from the top
    - The wind Speed
    - How will the wire distribute
    - Pole type with Burial Type or Base Plate type
    - The connections mode, use slip joint or flange
    - and others can be furthermore discussed when needed.



    Product Specification:

    Products
    • Anti-corrosive Steel Galvanized Electrical Steel Tubular Pole Self Supporting With Electric Accessories
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
    Surface Coating
    • Hot Dip Galvanization or Painting
    Quality Standard
    • ISO9001:2000,AAA credit rating
    Capacity
    • 2500 MT per Month
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Pole Height
    • 10M - 50 M
    Surface treatment
    • Hot dip galvanized Following ASTM A 123,
      color polyester power or any other standard by client required
    Material
    • Q235 or Q345 or Q420 or Q460



    Product Advantages:

    • Short Construction Cycle
    • Less Land Occupation
    • Low Overall Cost
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers



    Application Scope:

    Steel Tubular Poles are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc

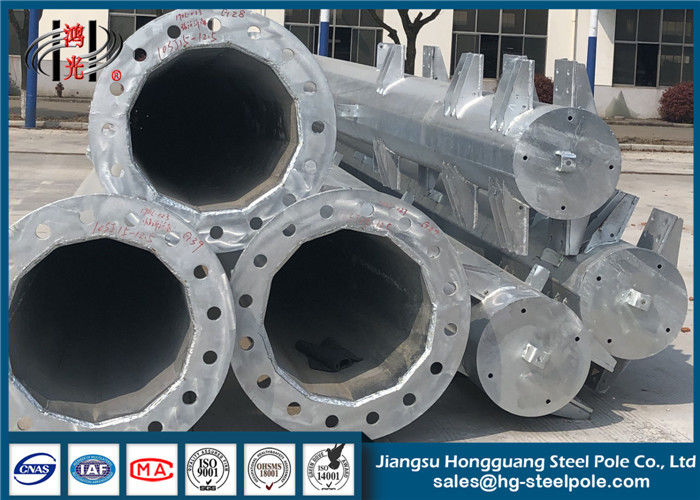

    The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.


    Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories

    Packaging&Shipping:

    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.



    Company Information:

    Anti - Corrosive Electric Steel Tubular Pole Self Supporting With Electric Accessories

    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

    “Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



    Material Test:

    1. All of our materials are purchased from famous mill factory to assure the quality.


    2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;


    3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.
