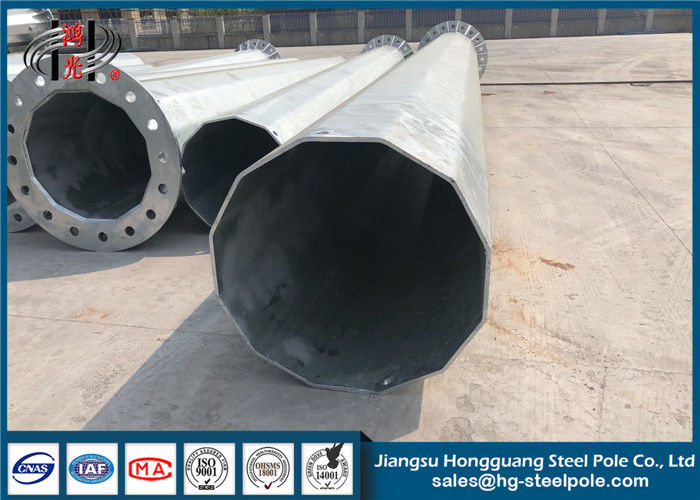

Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment

Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment

    • Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment
    • Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment
  • Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10KV ~ 500KV Welding: Welding Complies With CSA And AWS, AWS D1.1 Standard.
    Shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, Etc Type: Suspension Pole, Tensile Pole, Strain Pole, Angle Pole, Etc
    Safety Factor: Safety Factor For Conducting Wine : 8; Safety Factor For Grounding Wine : 8 Height: 7M - 30M
    Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Warranty: More Than 25 Years, It Is According To Installing Environment



    Hot Dip Galvanized Steel Tubular Pole Standard Flange Mode For Electric Distribution Equipment



    Product Description:

    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.

    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.

    4) Pole Height: Transmission pole ≥ 15M

    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)

    7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.

    8) Resistant: against earthquake of 8.8 grade. Wind speed as design.

    9) Quality Standard: ISO9001:2000,AAA credit rating

    10) Easy install and maintenance



    11) Packages: Normally covered by sack or as customer’s requirement.



    12) Voltage:10-550KV



    Product Specification:

    Products
    • Hot Dip Galvanized Steel Tubular Pole Standard Flange Mode For Electric Distribution Equipment
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
    Packages
    • Normally covered by sack or as customer’s requirement.
    Quality Standard
    • ISO9001:2000,AAA credit rating
    Shape
    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc).
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Pole Height
    • 7M - 30M.
    Surface treatment
    • Hot dip galvanized Following ASTM A 123,
      color polyester power or any other standard by client required
    Material
    • Hot Roll Steel Sheet Q345, GR50 which equivalent to S355JR.
    • Min Yield Stree 345 Mpa
    • Tensile Strength 470 Mpa ~ 630 Mpa



    Product Advantages:

    1).Short Construction Cycle
    Our factory has a professional technical and production team to ensure the completion time of the product.
    2).Low Overall Cost
    Our factory and raw material factory have long-term cooperation to ensure low cost of products.
    3).Weather Resistance
    The quality of our products is high quality and resistant to bad weather.
    4).Provide Professional Design by Our Experienced R&D Engineers
    5).Rich Exporting Experience
    6).ODM, OEM Acceptable
    7).Technical Support by E-mail



    Application Scope:

    Steel Tubular Poles are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc
    The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.


    Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment



    Packaging&Shipping:

    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.



    Company Information:

    Hot Dip Galvanization Steel Tubular Pole For Electric Distribution Equipment

    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

    “Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



    Manufacturing:

    Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



    Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

    After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
