500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460
  • 500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460
  • 500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460
  • 500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460

500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SS-110KV
Product Details
Product Name:
500KV Hot Dip Galvanized Steel Substation Structure Q345
Material:
Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc.
Appearance Treatment:
Hot-dip Galvanized / Painting
Shape:
Round / Polygonal / Conical / Tubular / Tapered
Connection Structure:
Overlap / Flange Connection
Export Countries:
Philippines , Malaysia , Pakistan , Russia , UK
High Light:

steel frame structure

,

transmission structure

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
Covered by Plastic Wrap or Mat or according to client's requests.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Tons per month
Product Description

500KV Hot Dip Galvanized Steel Substation Structure Q345

Description:


Our company has 16 years' manufacturing experience as well as advanced equipment, excellent technical staff and mature technology, which will assure the welding quality of steel structures, the galvanization quality and the firmness. Meanwhile, we have a whole set of quality test equipment to determine the physical properties and sizes of all steel structures, ensuring the desirable quality of the whole electrical substation structures.

The surface of all steel substation structures  could be treated by anti-rust techniques, such as hot dip galvanization, powder coated, or painted according to your requests. So the products are weather-resistant, corrosion-resistant and could serve as long as 50 years with less maintenance.

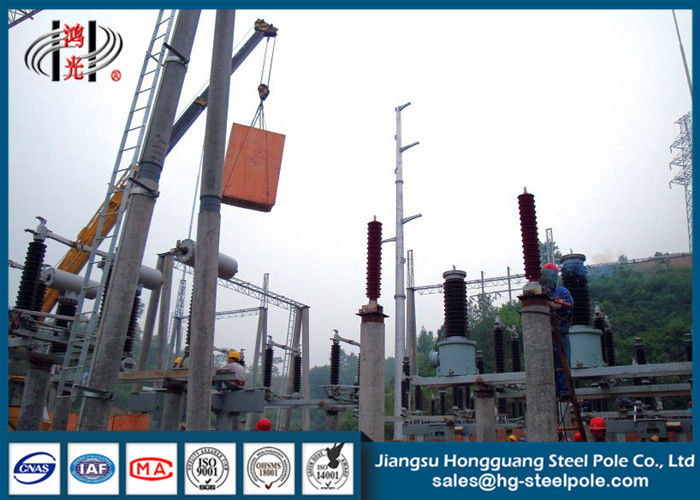

500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460 0



Specifications:



Application:   Electrical Power Transformer Substation / Switch Yard



Voltage Grade:  10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV



Material:   Q235B/A36,Yeild Strength≥235MPa

                 Q345B/A572,Yeild Strength≥345MPa

                 GR 50, GR 65



Wall thickness: 2~30mm



Export Experiences: Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania                                  Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of                                    the Congo , etc,



Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.



Welding:  Welding complies with AWS D1.1 standard.

                CO2 welding or submerged arc auto methods

                No fissure, scar, overlap, layer or other defects

                Internal and external welding makes the pole more beautiful in shape

                If customers need any other requirements of welding, we also can make adjustment ad your                       request



Advanatges:

  • Short Construction Cycle
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • Rich Exporting Experience
  • ODM, OEM Acceptable



Steel Structure Hot Dip Galvanization Inspection



500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460 1





Engineering and Design Management



500KV Hot Dip Galvanized Steel Substation Structure Q345 Q420 Q460 2



In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.





Terms and Conditions

 1.  Price Term: EXW, FOB, CFR or CIF.

  •   Shipping seaport: Shanghai Seaport.
  •   Please provide drawings if you have so that we can calculate the accurate price for you.
  •   We also provide design according to your requests, if you don't have drawings.

 2.  MOQ: One 40FT Container.

 3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

 4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.



Please feel free to contact us!



10-750KV Hot Dip Galvanized Electrical Power Substation Steel Structures for Power Transformer Substation.pdf
