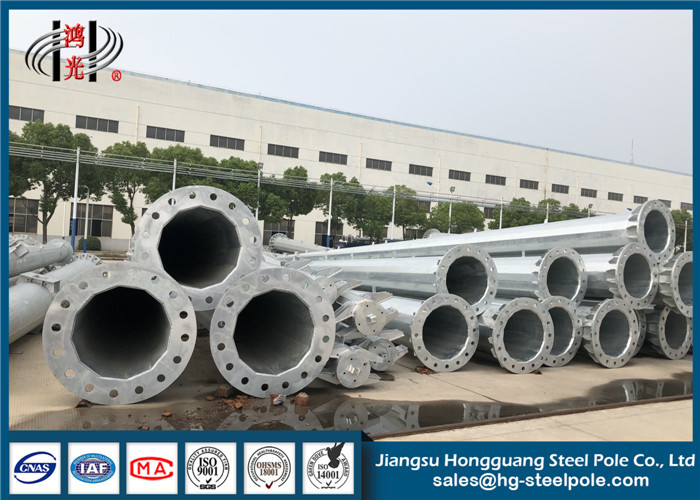

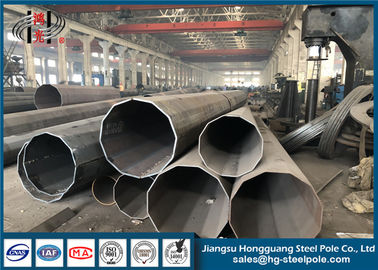

100um Galvanised Steel Poles

100um Galvanised Steel Poles

    • 100um Galvanised Steel Poles
    • 100um Galvanised Steel Poles
  • 100um Galvanised Steel Poles

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP-110KV

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Material: Q420 Once Forming: 16m Once Forming Without Joint
    Voltage Grade: 69-220KV Joint: Joint With Flange Mode
    Shape: Conical Wall Thickness: 4mm
    Galvanization: In Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
    High Light:

    100um power distribution poles

    ,

    4mm galvanized steel poles

    Galvanised Steel Poles Galvanized Steel Pole With Average Galvanized Coating 80-100um Power Transmission Poles

    Product Description:



    Products
    • Galvanised Steel Poles Galvanized Steel Pole With Average Galvanized Coating 80-100um Power Transmission Poles

    Application
    • Electrical Power Transformer Substation

    Standrad
    • NEA Standard

    Painting
    • According to clients' request

    Base plate
    • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization
    • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Life Period
    • More than 25 years, it is according to installing environment



    Product Advantages:

    The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.



    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



    Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost. In order to provide better service for customers, we promise to reply within 24 Working Hours and technical support by E-mail and calling service."

    Key Specification:

    1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
    2. Mounting Height: 3-40M Optional Mounting Height
    3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
    Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
    4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
    5. Base plate: Base plate is square or round and size as customers' requirement
    6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
    7. Ground mounted: The length buried underground as per customers requirement
    8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
    9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100µm average



    100um Galvanised Steel Poles 0



    Features:

    1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

    2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

    3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

    4. Packing: Plastic bulble , Mat &Straw Bale or following client required

    5. Length : within 16meters once forming( single section)

    6. Thickness: from 1mm to 25mm

    7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

    8. 110KV to 220kv

    9. Easy install and maintenance.
