Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project

Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project

  • Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project
  • Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project
Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 350KV Welding: AWS D1.1
Zinc Coating: ≥ 86 μm Application: Transmission Line
Joint Of Poles: Flange Mode Material: Q345
High Light:

galvanised steel poles

,

mono pole tower


Q345 35KV Anti - Rust Tubular Steel Pole For Transmission Line Project


Product Description:

Transmission Line steel tubular pole includes suspension steel tubular pole, tensile steel tubular pole, strain steel tubular pole, angle steel tubular pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel tubular poles are connected with outer flange and  burried with anchor bolt. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years. As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.




Product Specification:



Products

  • Q345 35KV Anti-rust Steel Tubular Pole for Transmission Line Project

Application

  • Power Distribution Line Project

Voltage Grade

  • 10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV,

Type
  • Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc

Quality Standard

  • ISO9001:2000

Shape

  • Conical, Dodecagonal

Base plate

  • Base plate is square with slotted holes for anchor bolts installation.

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,

Galvanization

  • Hot dip galvanization in accordance with American standard ASTM A123.

Once Forming

  • 16m Once forming without joint

Painting
  • Bitumen



Product Advantages:


The steel tubular poles need short construction cycle and lower overall cost, it is easier for workers to install and do maintenance work. Due to  hot dip galvanization, it resist from weather and corrosion. With more than 20 years' manufacturing experience, our company is capable to handle volume orders and provide professional design by our experienced R&D engineer. In addition, ODM&OEM are available. In addition, we have exported to many foreign countries, like Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo , etc,

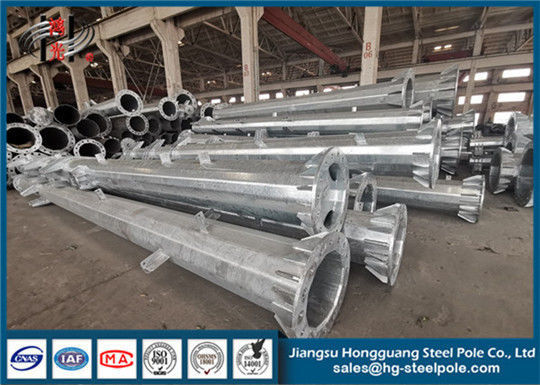

Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project 0


Standard Accessory:
- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder



Production Process Flow Chat:

Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery


Packaging&Shipping:

Steel tubular poles are covered by Plastic Wrap or Mat or according to client's requests.



Company Information:


Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums.
“Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



Q345 35KV Anti - Rust Steel Tubular Pole For Transmission Line Project 1
