NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection

NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection

  • NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection
  • NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection

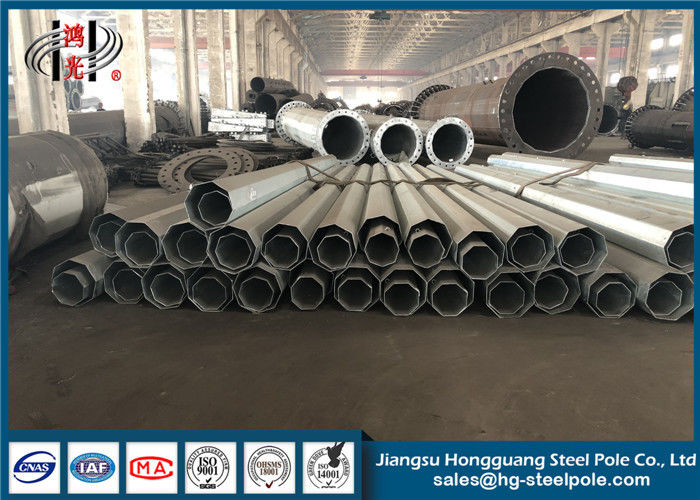

NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others ) Application: Distribution Line Project
Shape: Round / Polygonal / Conical / Tubular Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting: According To Clients' Request Connection Structure: Overlap / Flange Connection
Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Wall Thickness: 2.3-18mm
High Light:

galvanised steel poles

,

mono pole tower

NEA Standard Polygonal Transmission Pole Steel Tubular Poles Electric Power Pole



Product Description:

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:

Products
  • NEA Standard Polygonal Transmission Pole Steel Tubular Poles Electric Power Pole
Application
  • Power transmission and distribution Line
Voltage Grade
  • 220KV
Once Forming
  • 16m Once forming without joint
Shape
  • Round / polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Painting

  • According to clients' request

Galvanization

  • 15m steel pole is hot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.



Product Advantages:

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.



 NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection 0




Standard Accessories:

- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts





Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86



Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

NEA Standard Polygonal Transmission Steel Tubular Pole Overlap / Flange Connection 1



Manufacturing:



Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.





Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Skype: tangjia870124

Please feel free to contact us!
