Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole

Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole

  • Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole
  • Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole
Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Material: Hot Roll Steel Once Forming: 16m Once Forming Without Joint
Voltage Grade: 110KV Joint: Flange Mode
Shape: Polygonal(6-side,8side,12-side,16side) Round Tapered Wall Thickness: 3.5mm
Galvanization: Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

110KV Galvanised Steel Pole

,

3.5mm Galvanised Steel Pole

,

110KV Electric Transmission Tower

Hot Dip Galvanized Power Transmission Poles Galvanised Steel Pole Electric Transmission Tower

Product Description:



Products
  • Hot Dip Galvanized Power Transmission Poles Galvanised Steel Pole Electric Transmission Tower

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Base plate
  • Square/round/polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization
  • Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.

Product Brief:

Our steel pole, steel poles, steel power poles, power distribution equipment, electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,street lamp poles ,solar street lamps steel poles ,high mast lamp poles ,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product, street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm. Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating, final quality ch eck according by client required.

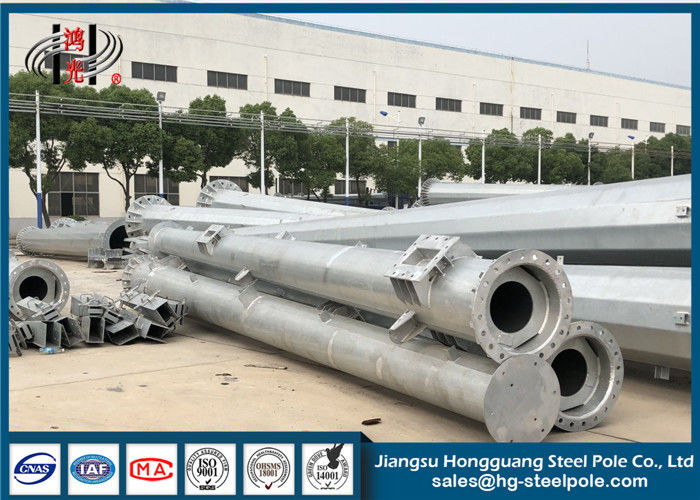

Hot Dip Thickness 3.5mm 110KV Galvanised Steel Pole 0




Key Specification:

1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100μm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015
