GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance

GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance

  • GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance
  • GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance
GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10KV ~ 220KV Welding: AWS D1.1 Standard
Material: Q460, GR65 Connection Structure: Overlap/Flange Connection
Shape: Conical, Round, Polygona Quality Standard: ISO9001:2000,AAA Credit Rating
High Light:

galvanised steel poles

,

mono pole tower



GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance



Product Description:

There are five types of steel tubular pole, including : suspension steel tubular pole, tensile steel tubular pole, strain steel tubular pole, angle steel tubular pole and dead-end steel tubular pole.In order to avoid weather corrosion, steel tubular poles are hot dip Galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123 which the zinc coating at least 86 microns.

The steel tubular poles price is based on its specification, like pole top/butt diameter, material, thickness, height, accessory, etc

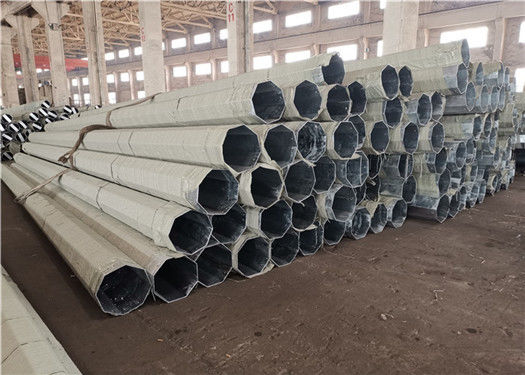

GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance 0

Product Specification:

Products
  • GR65 800kg Design Load Steel Tubular Pole for Electrical Power Transmission Line
Application
  • Electrical Power distribution line
Voltage Grade
  • 10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others
Packages
  • Normally covered by plastic wrap or as customer’s requirement.
Quality Standard
  • ISO9001:2000,AAA credit rating
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Finish
  • Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.



Life Period



  • More than 25 years, it is according to installing environment



Base plate



  • Square/round/Polygon



Production Process

Flow Chat



  • Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery



Product Advantages:

In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Power Industry Power Equipment and Transmission Material Inspection Test Center.



Steel tubular pole needs shoter construction cycle and lower overall cost. Compared with steel tower, steel tubular pole is easier for workers to install and maintain. Due to hot dip galvanization, the pole has weather resistance and anti-corrosion features.




Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.


GR65 800kg Design Load Steel Tubular Pole , Steel Electric Pole Weather Resistance 1



Company Information:

JIANGSU HONGGUANG STEEL POLE CO., LTD.


With over 15 Years of Experience/ Capable to Handle Volume Orders

“Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
