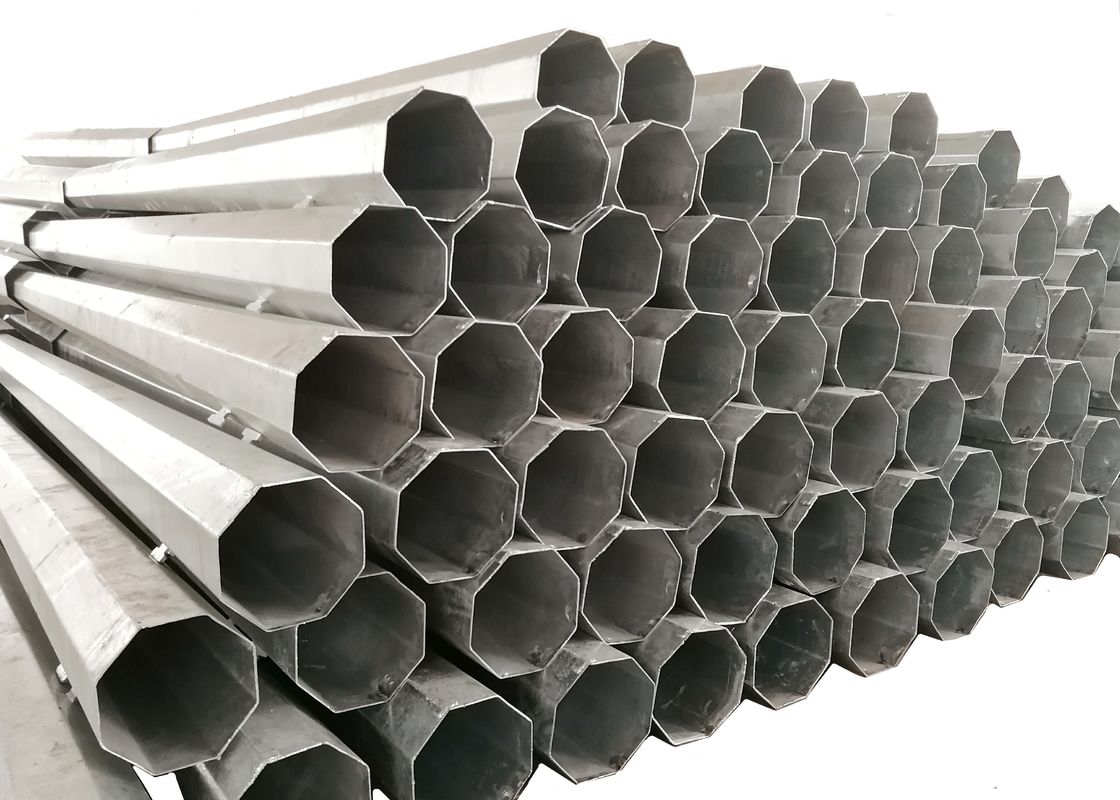

Gr65 1600dan 16kn 14m Anti Corrosive Power Distribution Steel Pole

Gr65 1600dan 16kn 14m Anti Corrosive Power Distribution Steel Pole

  • Gr65 1600dan 16kn 14m Anti Corrosive Power Distribution Steel Pole
Gr65 1600dan 16kn 14m Anti Corrosive Power Distribution Steel Pole
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Thick: 4.0mm Material: Gr65
Power: 10 KV ~550 KV Thickness: 3mm To 6mm
Shape: Conoid ,Multi-pyramidal,Columniform,polygonal Or Conical Type: 45ft Power Steel Pole
Keyword: Steel Electric Pole
High Light:

14m power distribution pole

,

Gr65 power Steel pole

,

16kn power distribution pole

Gr65 1600dan 16kn 14m 45ft Anti Corrosive Power Steel Pole With Cross Arm



45FT distribution pole, mainly for city power grid and power distribution network. These pole belong to tubular pole, which shall be made of welded tubes, swaged and joined together. It is uniformly tapered in circular in cross-sections. The sections of the steel poles shall be designed such that the butt end of the top section fits on the top end of the second section, the butt end of the second sections fits on the top end of the third sections and so on. The varisou sections shall be fitted together by pressed frication joints. Most of power voltage as 35KV, 66KV, 69KV, 110KV, 115KV, 132KV, 220KV, after fabrication all distribution poles are delivered to the galvanizing facility to be Hot DIP Galvanized.



• Completely hot-dip galvanized after fabrication
• Fast, easy installation
• Designed for applications with stringent defection requirements
• Internal routing of transmission lines



The power pole of our company is made from quality sheets through bending, forming, automatic welding, hot dip galvanization, and powder coating. We owned an advanced production-line, which included a Flatting machine, Steel plate shearer, bending machine, Auto-closed up the machine, submerged arc welding machine, and powder coating line, and our workmanship and quality control were achieved high opinion from our clients.



Specifications:

Type
15m Electrical Power Pole
Suit for
Electricity distribution
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Gr65
Power
10KV ~550KV
Design Load in Kg
300~ 1000 Kg applied to 50cm from the to pole
Surface treatment
Hot-dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode, innerflange mode, face to face joint mode.
Design of pole
Against earthquake of 8 grade
Standard
ISO 9001
Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard : AWS ( American Welding Society ) D 1.1
Thickness
3 mm to 6 mm





We produce any dimensions and thicknesses straight round, tapered round, straight square, tapered square etc pole as your demand.

1) The main body pole adopts the technology of the disposable shaping

2) The welding seam is level and smooth
3) The welding of the light post is the automatic Asian arc welding
4) The antiseptic disposing of the lamp pole is the hot galvanizing and the surface is smooth and beautiful
5) Both the adjustment of the color and that of the height are alternative.



Gr65 1600dan 16kn 14m Anti Corrosive Power Distribution Steel Pole 0



1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
