500daN Load Polygonal SF2.0 35ft 10.5m Street Steel Electric Pole

500daN Load Polygonal SF2.0 35ft 10.5m Street Steel Electric Pole

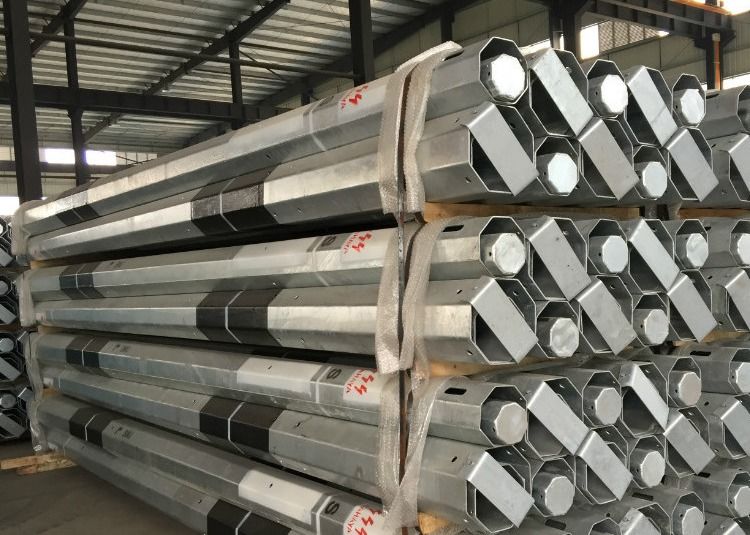

  • 500daN Load Polygonal  SF2.0 35ft 10.5m Street  Steel Electric Pole
500daN Load Polygonal  SF2.0 35ft 10.5m Street  Steel Electric Pole
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Material: Hot Roll Steel Q235, Q345, A36, Gr50 Etc. Appearance Treatment: Hot-dip Galvanized/painting
Voltage Grade: 13.8KV 69KV Connection Structure: Overlap
Application: Power Transmission And Distribution Line Steel Pole Height Options: 30ft
Keyword: Steel Electric Pole
High Light:

500daN Steel Electric Pole

,

35ft Steel Electric Pole

,

10.5m street electric pole

Polygonal Safety Sf2.0 35ft 10.5m Steel Poles With 500daN Load​



With more than ten years of experience on the steel pole, we have manufactured and exported a huge quantity of 30FT 35FT 40FT 13.8Kv hot-dip galvanized steel pole For 10KV To 220KV Electric Power Transmission Line which service for the electrical industry development of the world. We have the complete production line and machines, and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the electric 13.8Kv hot-dip galvanized steel poles every day. A quick production period and delivery schedule ensured our client have a more obvious advantage in their market. The electric 13.8Kv hot-dip galvanized steel pole is made by the high-quality hot rolled steel plate which was bent into Trapezoid according to the poles' dimension, then welding, grinding, hot-dip galvanized and packing for delivery.



• Completely hot-dip galvanized after fabrication
• Fast, easy installation
• Designed for applications with stringent defection requirements
• Internal routing of transmission lines



The power pole of our company is made from quality sheets through bending, forming, automatic welding, hot dip galvanization, and powder coating. We owned an advanced production-line, which included a Flatting machine, Steel plate shearer, bending machine, Auto-closed up the machine, submerged arc welding machine, and powder coating line, and our workmanship and quality control were achieved high opinion from our clients.



Specifications:

Type 35FT Steel Metal power poles, 5KN ,Sf 2.0 ,500daN,10.5M details base on drawing
Suitable Uses Power Distribution 11 to 69kv
Shape( Cross-section)

Tubular, Octagonal,6side, 12side



Power grade 11kv ,15kv,33KV, 69kv
No of Section max 3 section
Length (m) 10.5m 11m,12m,13m,14m,
Foundation Direct burial- 1.45 to 1.6m
Working Load 500daN SF 2.0
Breaking Load 500daN- 5.0KN ,
Safety Factor 2.0 Safety factor
Material ASTM 572 GR50 or equal ,ASTM 572 GR65 or equal.
Minimum Yield Strength 355mpa / 450mpa
Minimum Ultimate Tensile Strength 450mpa/550mpa
EL % >=15%, >=18%
Top diameter(mm) 128/129/130
Bottom diameter(mm) 301/302/303
Min Thickness(mm) >=3.5mm,
Tolerance of Dimensions +- 1%
Engraving Nameplate through rivet or glue, engraving, embossment as per customers’ requirements
Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards



Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.



Loading Conditions

Maximum line deviation

0-2 degree

Design Wind Speed (Extreme Wind)

32m/s 123km./h

Circular Shape Factor

1.2

Maximum Deflection (Extreme Wind)

10% of overall pole length
Welding

The internal and external double welding process produces a seamless surface

Welding Standard: AWS ( American Welding Society ) D 1.1





We produce any dimensions and thicknesses straight round, tapered round, straight square, tapered square etc pole as your demand.

1) The main body pole adopts the technology of the disposable shaping

2) The welding seam is level and smooth
3) The welding of the light post is the automatic Asian arc welding
4) The antiseptic disposing of the lamp pole is the hot galvanizing and the surface is smooth and beautiful
5) Both the adjustment of the color and that of the height are alternative.



500daN Load Polygonal  SF2.0 35ft 10.5m Street  Steel Electric Pole 0



Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
